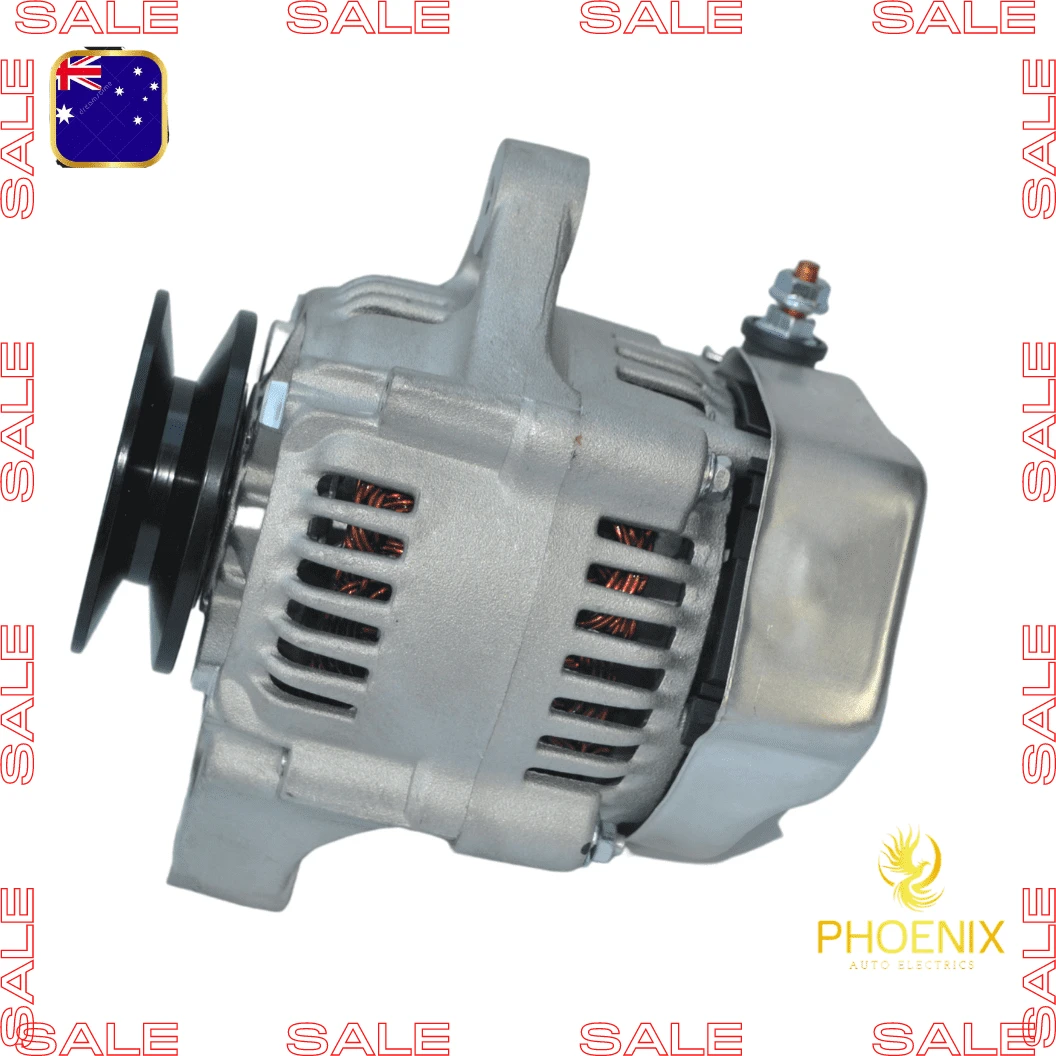

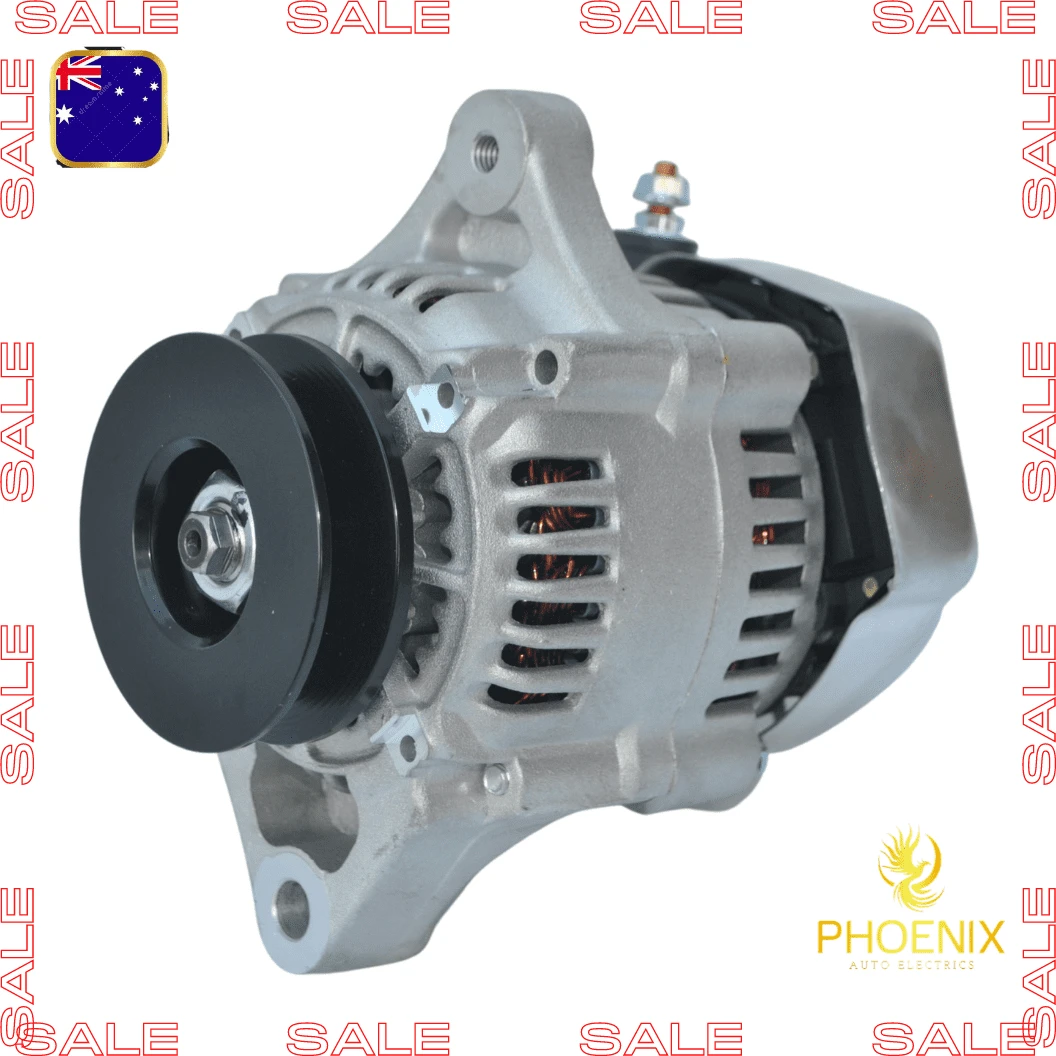

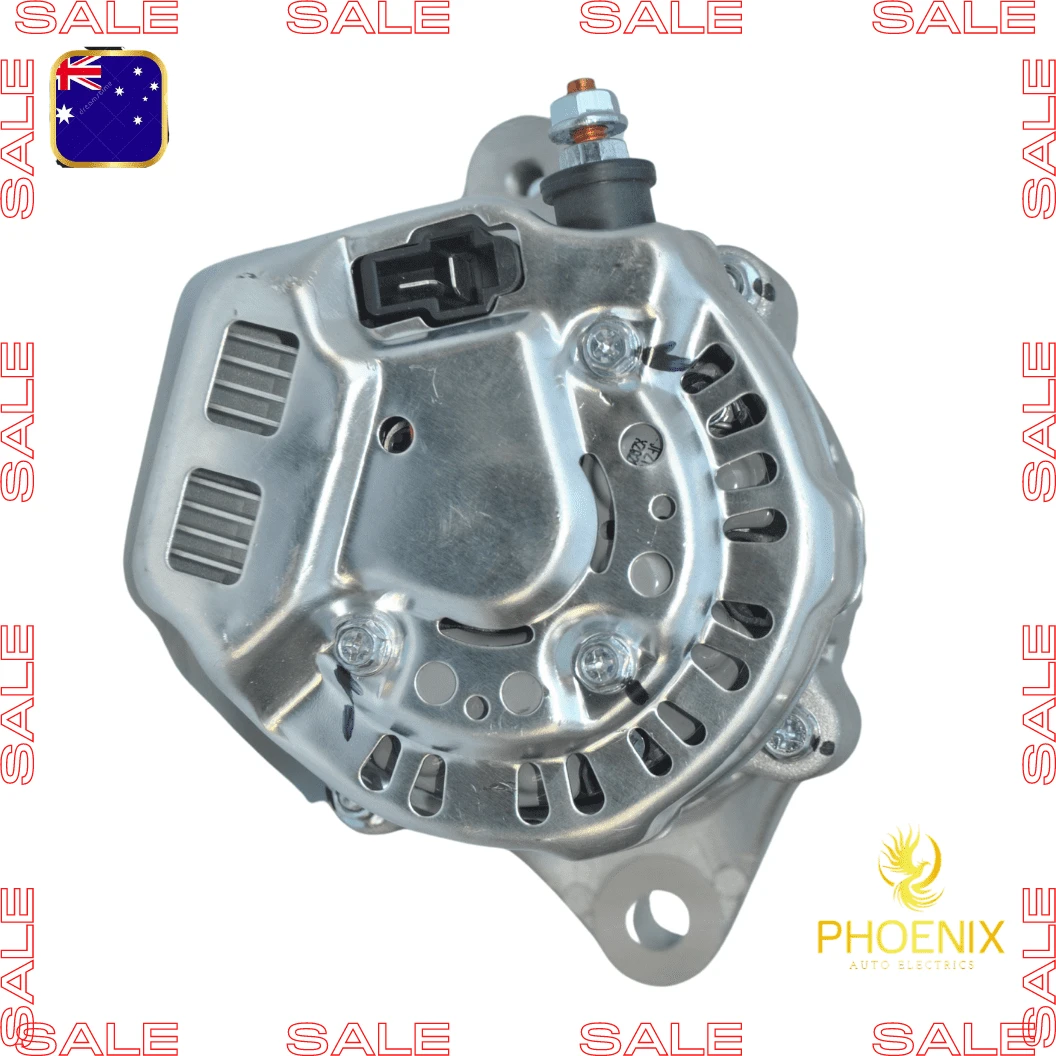

Alternator For Toyota Forklift & Komatsu 4P 12V 35Amps 5FD 15, 23, 5FGL 10, 18, 23 4D95 V1502
SKU: 12180
$214.95
In stock
1 in stock
Product information
| Weight | 4.00 kg |
|---|---|
| Dimensions | 30 × 30 × 30 cm |
Description
Item Specifics:
| Specific Type | Specific Value |
| Type | Alternator |
| Engine Size | 5FD20 30, 5FG10 15 18, 4D95, V1502 |
| Suit these brands | Komatsu Toyota |
| Cross Reference Numbers | 600-821-4490, 3049491 |
| Engine Model | 100211-1660, 100211-1661, 100211-1662, 100211-440 |
| MODEL | 100211-4490, 9760218-166 |
| Manufacturer Part Number | 600-821-2350, |
| MPN | 27060-78001-71 |
| voltage | 12v |
| Amperage | 40A |
Specification:
| Volts | 12 |
| Amps | 40 |
| Adjustment Hole (mm) | M8x1.25 |
| Pivot Hole (mm) | 8 |
| Adjustment to Pivot (mm) | 156 |
| Inside Feet To Feet (mm) | 68 |
| Pulley (mm) | 76 |
| No Of Grooves | 1B |
| Plug | RP17 |
Reference:
| Denso | 100211-1660, 100211-1661, 100211-1662, 100211-449, 100211-4490, 9760218-166 |
| Hyster | 3049491 |
| Komatsu | 600-821-2350, 600-821-4490 |
| Lester | 12180, 12197 |
| Toyota | 27060-78001-71 |
Applications:
| Make | Model | Engine | Years |
| Komatsu | FD20-11 | 4D95 | 1988 |
| Komatsu | FD20DC-11 | 4D95 | 1988 |
| Komatsu | FD20SDC-11 | 4D95 | 1988 |
| Komatsu | FD20ST-11 | 4D95 | 1988 |
| Komatsu | FD20T-11 | 4D95 | 1988 |
| Komatsu | FD20WC-11 | 4D95 | 1988 |
| Komatsu | FD30-11 | 4D95 | 1988 |
| Komatsu | FD30H-11 | 4D95 | 1988 |
| Komatsu | FD30S-11 | 4D95 | 1988 |
| Komatsu | FD30S-5 | 4D95 | 1988 |
| Komatsu | FD30SV-11 | 4D95 | 1990 |
| Komatsu | FD30V-11 | 4D95 | 1990 |
| Kubota | 5FDL10 | 1986 - 1989 | |
| Kubota | V1502 | 1986 | |
| Toyota | 5FD-10 | V1502 | 1986 - 1989 |
| Toyota | 5FD-14 | V1502 | 1986 - 1989 |
| Toyota | 5FD-15 | V1502 | 1986 - 1989 |
| Toyota | 5FD-18 | V1502 | 1986 - 1989 |
| Toyota | 5FD-20 | V1502 | 1986 - 1989 |
| Toyota | 5FD-23 | V1502 | 1986 - 1989 |
| Toyota | 5FD-25 | V1502 | 1986 - 1989 |
| Toyota | 5FDL-10 | V1502 | 1986 - 1989 |
| Toyota | 5FDL-14 | V1502 | 1986 - 1989 |
| Toyota | 5FDL-15 | V1502 | 1986 - 1989 |
| Toyota | 5FDL-18 | V1502 | 1986 - 1989 |
| Toyota | 5FDL-20 | V1502 | 1986 - 1989 |
| Toyota | 5FDL-23 | V1502 | 1986 - 1989 |
| Toyota | 5FDL-25 | V1502 | 1986 - 1989 |
| Toyota | 5FG-10 | 4P | 1986 - 1988 |
| Toyota | 5FG-10 | 4Y | 1986 - 1988 |
| Toyota | 5FG-14 | 4P | 1986 - 1988 |
| Toyota | 5FG-14 | 4Y | 1986 - 1988 |
| Toyota | 5FG-15 | 4P | 1986 - 1988 |
| Toyota | 5FG-15 | 4Y | 1986 - 1988 |
| Toyota | 5FG-18 | 4P | 1986 - 1988 |
| Toyota | 5FG-18 | 4Y | 1986 - 1988 |
| Toyota | 5FG-20 | 4P | 1986 - 1988 |
| Toyota | 5FG-20 | 4Y | 1986 - 1988 |
| Toyota | 5FG-23 | 4P | 1986 - 1988 |
| Toyota | 5FG-23 | 4Y | 1986 - 1988 |
| Toyota | 5FG-25 | 4P | 1986 - 1988 |
| Toyota | 5FG-25 | 4Y | 1986 - 1988 |
| Toyota | 5FG-28 | 4Y | 1986 - 1988 |
| Toyota | 5FG-30 | 4Y | 1986 - 1988 |
| Toyota | 5FGL-10 | 4P | 1986 - 1989 |
| Toyota | 5FGL-14 | 4P | 1986 - 1989 |
| Toyota | 5FGL-15 | 4P | 1986 - 1989 |
| Toyota | 5FGL-18 | 4P | 1986 - 1989 |
| Toyota | 5FGL-20 | 4P | 1986 - 1988 |
| Toyota | 5FGL-23 | 4P | 1986 - 1988 |
| Toyota | 5FGL-25 | 4P | 1986 - 1988 |
