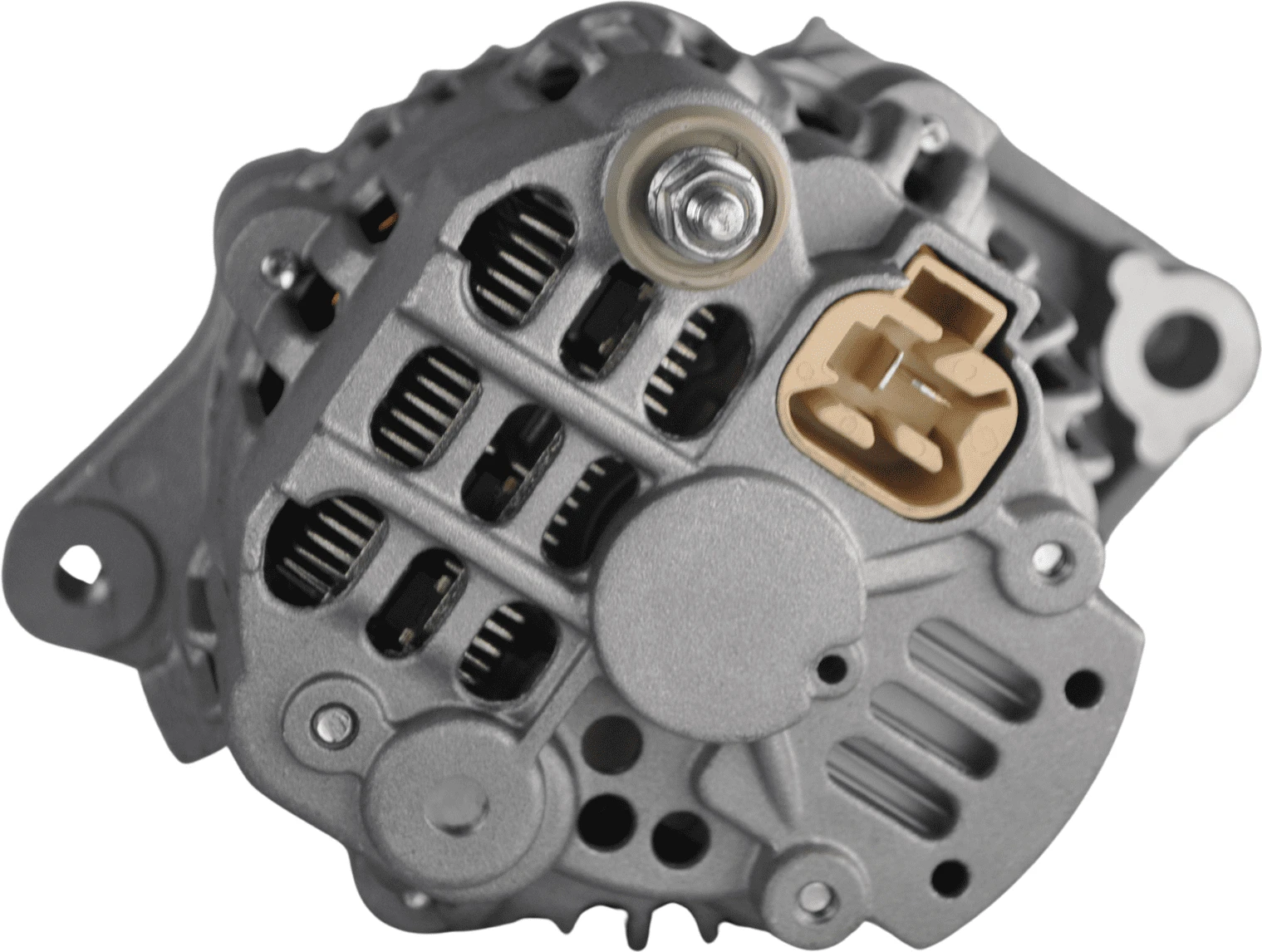

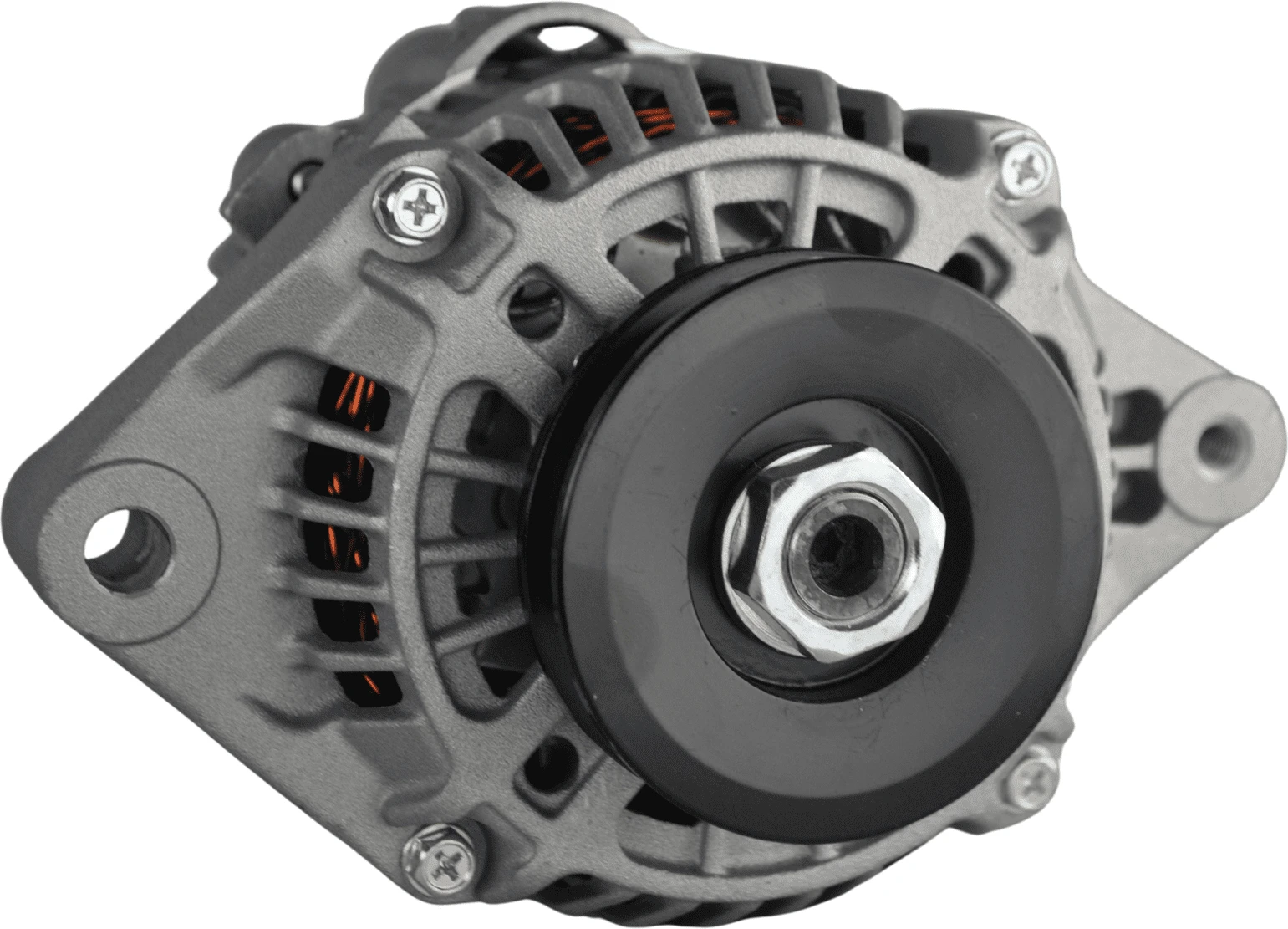

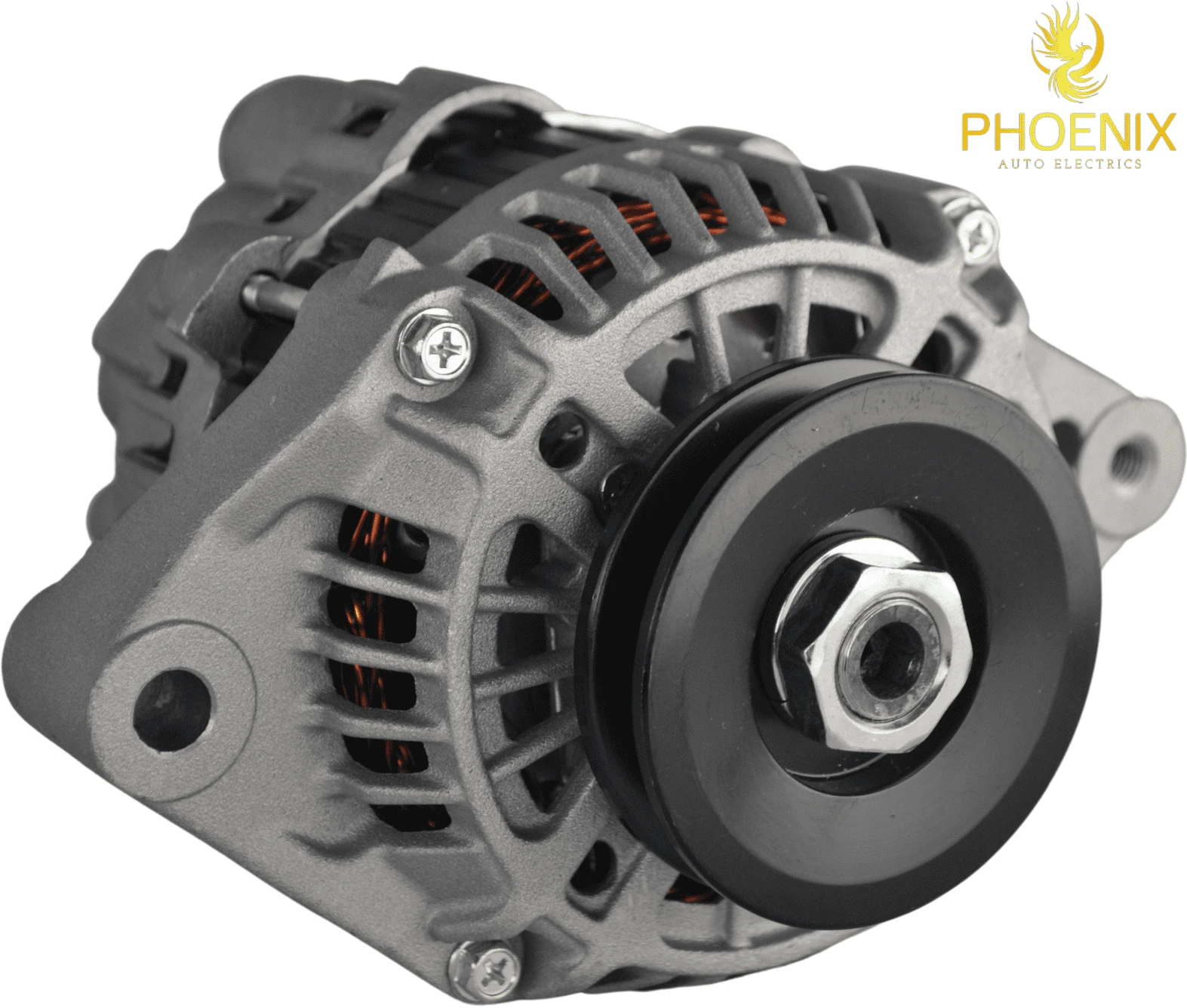

Alternator to fit Kubota M7040 M8200 M9000 and John Deere Tractor 65-6657
SKU: 12318
$199.95
In stock
1 in stock
Product information
| Weight | 3.500 kg |
|---|---|
| Dimensions | 20 × 20 × 20 cm |
Description
Item Specifics:
| Specific Type | Specific Value |
| Type | Alternator |
| Suit these brands | Kubota Mitsubishi UTV John Deere |
| Cross Reference Numbers | 3C581-74010, 3C581-74011, 3C581-74012 |
| Engine Model | M7040 M6800, M8200, M9000 |
| Cross Reference Numbers 2 | 3A651-74010, 3A651-74011, 1C011-64010, |
| Manufacturer Part Number | A7TA1677 |
| MPN | 3C581-74012 |
| voltage | 12 |
| Features | Pulley Included |
| Reference OE/OEM Number | A007TA1677 1C011-64011, 1C011-64013, 1C011-64014, |
| Amperage | 60 |
Reference:
-
- KUBOTA: 1C010-64010 1C011-64011, 1C011-64013, 1C011-64014, 3A651-74010, 3A651-74011, 1C011-64010, 3C581-74010, 3C581-74011, 3C581-74012
- MITSUBISHI: A7TA1677 A007TA1677
Specification:
-
- ITEM DESCRIPTION: ALTERNATOR
- UNIT TYPE: MITSUBISHI
- VOLTAGE: 12
- AMPERAGE: 45
- FAN: INTERNAL
- REGULATOR: INTERNAL
- GROOVES: 1
- OUTPUT STUD DIMENSIONS: M6-1.0
- REGULATOR CLOCK: 11:00
- POLARITY: NEGATIVE
- PULLEY OD: 2.913IN / 74MM
- MOUNTING EAR 1: M8-1.25 THREADED
- MOUNTING EAR 2: 10.7MM UNTHREADED
- WEIGHT: 8.53 LBS / 3.88 KG
Applications:
-
- KUBOTA TRACTORS - UTILITY M6800 KUBOTA V3300E 68HP DSL 1998-2005
- KUBOTA TRACTORS - UTILITY M6800DT KUBOTA V3300E 68HP DSL 1998-2004
- KUBOTA TRACTORS - UTILITY M6800HD-F KUBOTA V3300E 68HP DSL 2001-2005
- KUBOTA TRACTORS - UTILITY M6800S KUBOTA V3300E 68HP DSL 1998-2005
- KUBOTA TRACTORS - UTILITY M6800S-F KUBOTA V3300E 68HP DSL 1998-2005
- KUBOTA TRACTORS - UTILITY M6800SC KUBOTA V3300E 68HP DSL 1999-2004
- KUBOTA TRACTORS - UTILITY M6800SD-F KUBOTA V3300E 68HP DSL 1998-2005
- KUBOTA TRACTORS - UTILITY M6800SDC KUBOTA V3300E 68HP DSL 2000-2004
- KUBOTA TRACTORS - UTILITY M6800SDT KUBOTA V3300E 68HP DSL 1998-2005
- KUBOTA TRACTORS - UTILITY M8200 KUBOTA V3300 82HP DSL 1998-2005
- KUBOTA TRACTORS - UTILITY M8200C KUBOTA V3300 82HP DSL 1998-2005
- KUBOTA TRACTORS - UTILITY M8200CCS KUBOTA V3300 82HP DSL 1998-2005
- KUBOTA TRACTORS - UTILITY M8200DT-F KUBOTA V3300 82HP DSL 1998-2005
- KUBOTA TRACTORS - UTILITY M8200DTC KUBOTA V3300 82HP DSL 1999-2005
- KUBOTA TRACTORS - UTILITY M8200F KUBOTA V3300 82HP DSL 1998-2004
- KUBOTA TRACTORS - UTILITY M8200SDNB KUBOTA V3300 82HP DSL 2000-2005
- KUBOTA TRACTORS - UTILITY M8200SDNBC KUBOTA V3300 82HP DSL 2000-2005
- KUBOTA TRACTORS - UTILITY M8200SDNBF KUBOTA V3300 82HP DSL 2000-2005
- KUBOTA TRACTORS - UTILITY M9000 KUBOTA V3300 90HP DSL 1999-2009
- KUBOTA TRACTORS - UTILITY M9000C KUBOTA V3300 90HP DSL 1999-2009
- KUBOTA TRACTORS - UTILITY M9000DT-F KUBOTA V3300 90HP DSL 1999-2009
- KUBOTA TRACTORS - UTILITY M9000DTC KUBOTA V3300 90HP DSL 1999-2009
