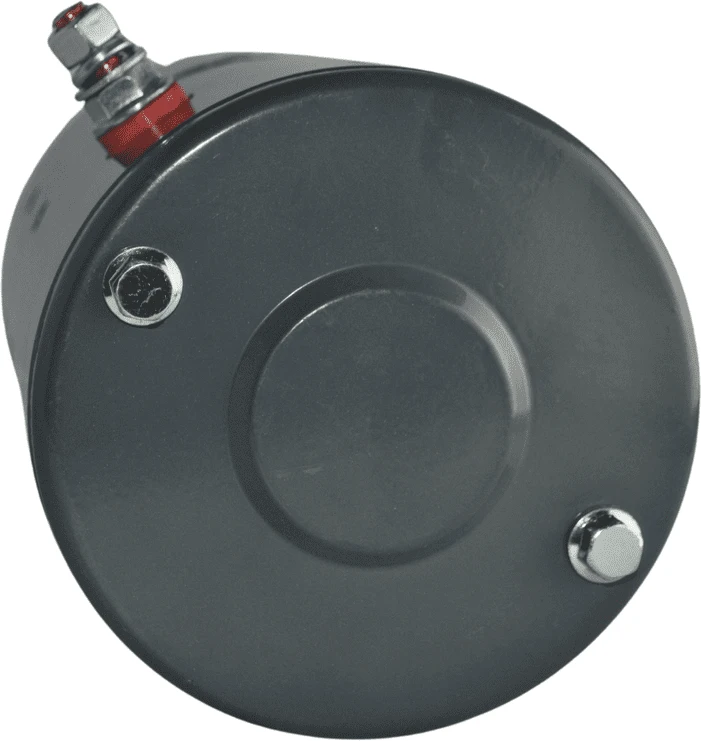

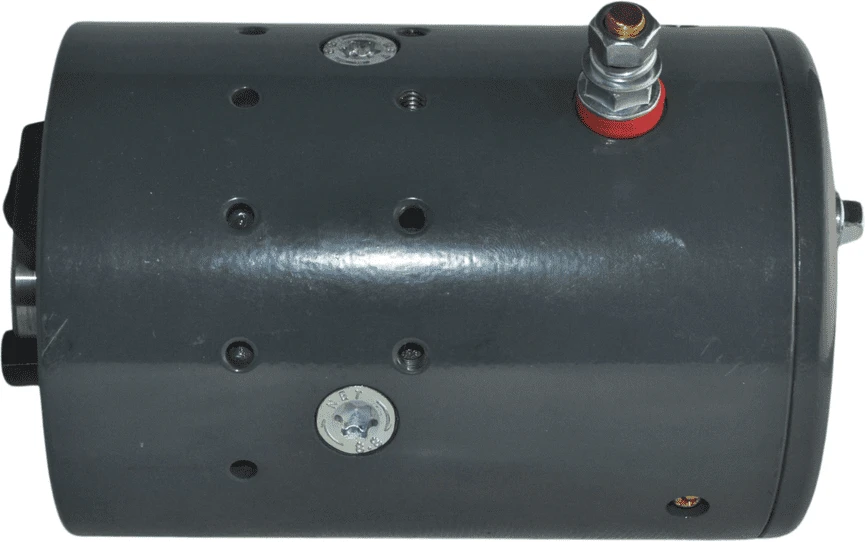

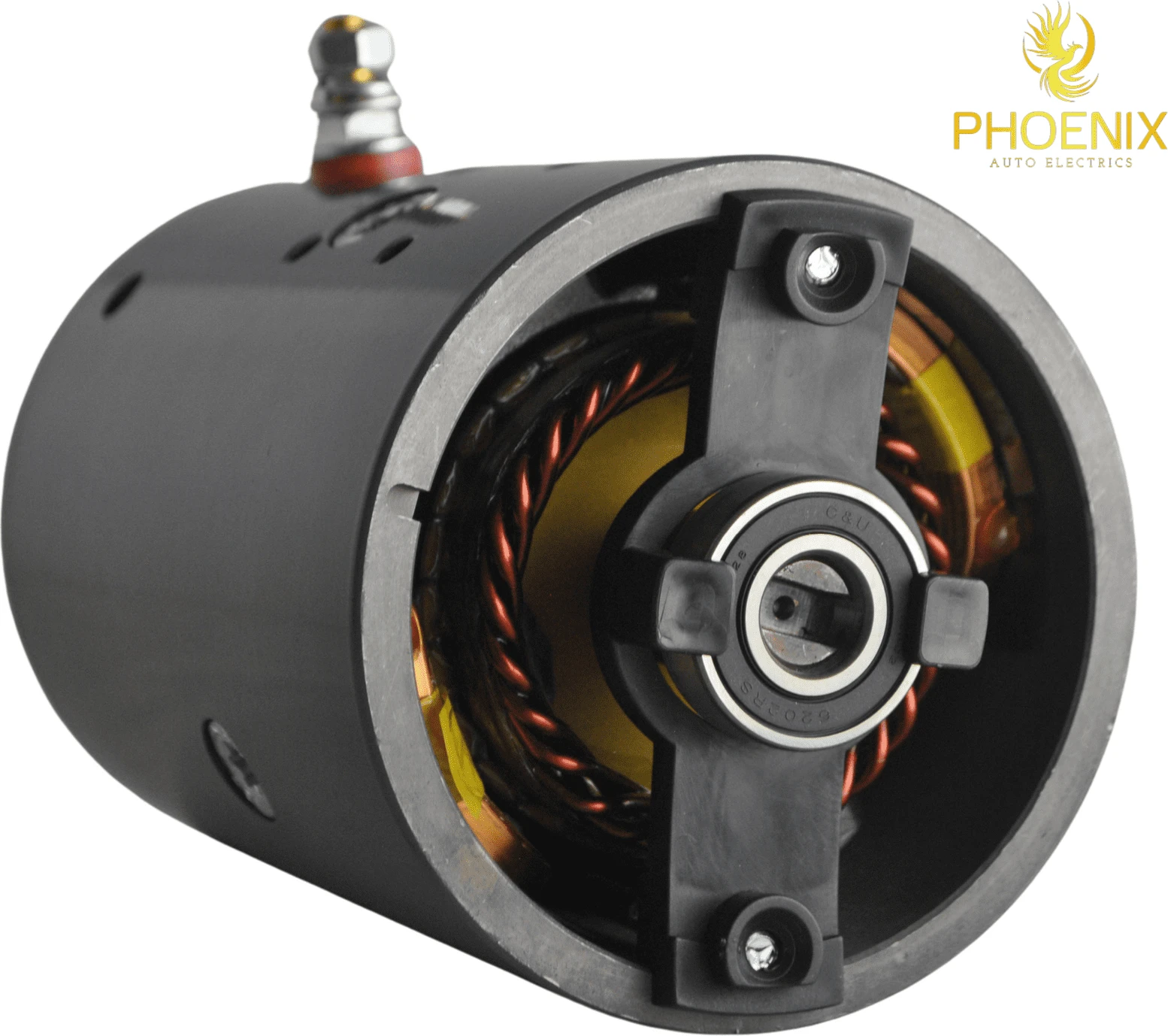

Hydraulic DC Pump Motor for Monarch JS Barnes & Many Applications 2200478 2200776 MUE6107
SKU: 10752
$428.95
In stock
3 in stock
Product information
| Weight | 10.5 kg |
|---|---|
| Dimensions | 20 × 20 × 20 cm |
Description
Item Specifics:
| Specific Type | Specific Value |
| Type | Hydraulic Pump motor |
| Suit these brands | JS Barnes, Monarch MTE Prestolite |
| Cross Reference Numbers |
MUE6201, MUE6201BS, MUE6201S, MUE6301, MUE6301S
|
| Engine Model | 6-2126, 46-2414, 46-2559, 46-2595, 46-2624, |
| MODEL | 46-2662, 46-2782, 46-3553, 46-3571, 46-3578 |
| Cross Reference Numbers 2 |
MDY6121, MDY6132S, MUE6102BS, MUE6107, MUE6108S,
|
| Cross Reference Numbers 3 | W-8999-DBB W-8999D W8999DBB W8999 |
| MPN | MUE6201 |
| voltage | 12v |
| Horse Power | 1.7kw, 2.28hp |
| Rotation | CCW |
| OE/OEM Number | 2200478 2200727 2200776 2200820 2200849 |
Reference:
| Prestolite | 46-2126, 46-2414, 46-2559, 46-2595, 46-2624, 46-2662, 46-2782, 46-3553, 46-3571, 46-3578, 46-3620, 46-3621, 46-4057, MDY6121, MDY6132S, MUE6102BS, MUE6107, MUE6108S, MUE6201, MUE6201BS, MUE6201S, MUE6301, MUE6301S |
| Lester | 10752 |
| JS Barnes | 2200849 2200820 2200776 2200727 2200478 |
| STRATOLINE | 80-10752 8010752 |
| WESTERN MOTOR | W-8999-DBB W-8999D W8999DBB W8999 |
Specification:
| Description: | Pump Motor |
| OEM(s) Replaces: | Ametek, Monarch/Bucher, Prestolite |
| Voltage: | 12 |
| Power: | 1.7kW / 2.28HP |
| Number of Fields: | 2 |
| Condition: | New |
| Rotation: | CCW |
| OD: | 4.5in / 114.3mm |
| Shaft OD: | 0.591in / 15mm |
| Length: | 7.236in / 183.8mm |
| Terminal 1 Size: | 5/16-24 |
| Shaft: | Slotted |
| Current Type: | DC |
| Warranty: | 1 Year |
| Notes: |
|
| Application: | John S. Barnes, Monarch Hydraulics, Waltco & Other Applications |
| Weight: | 16.1 lbs / 7.32 kg |
