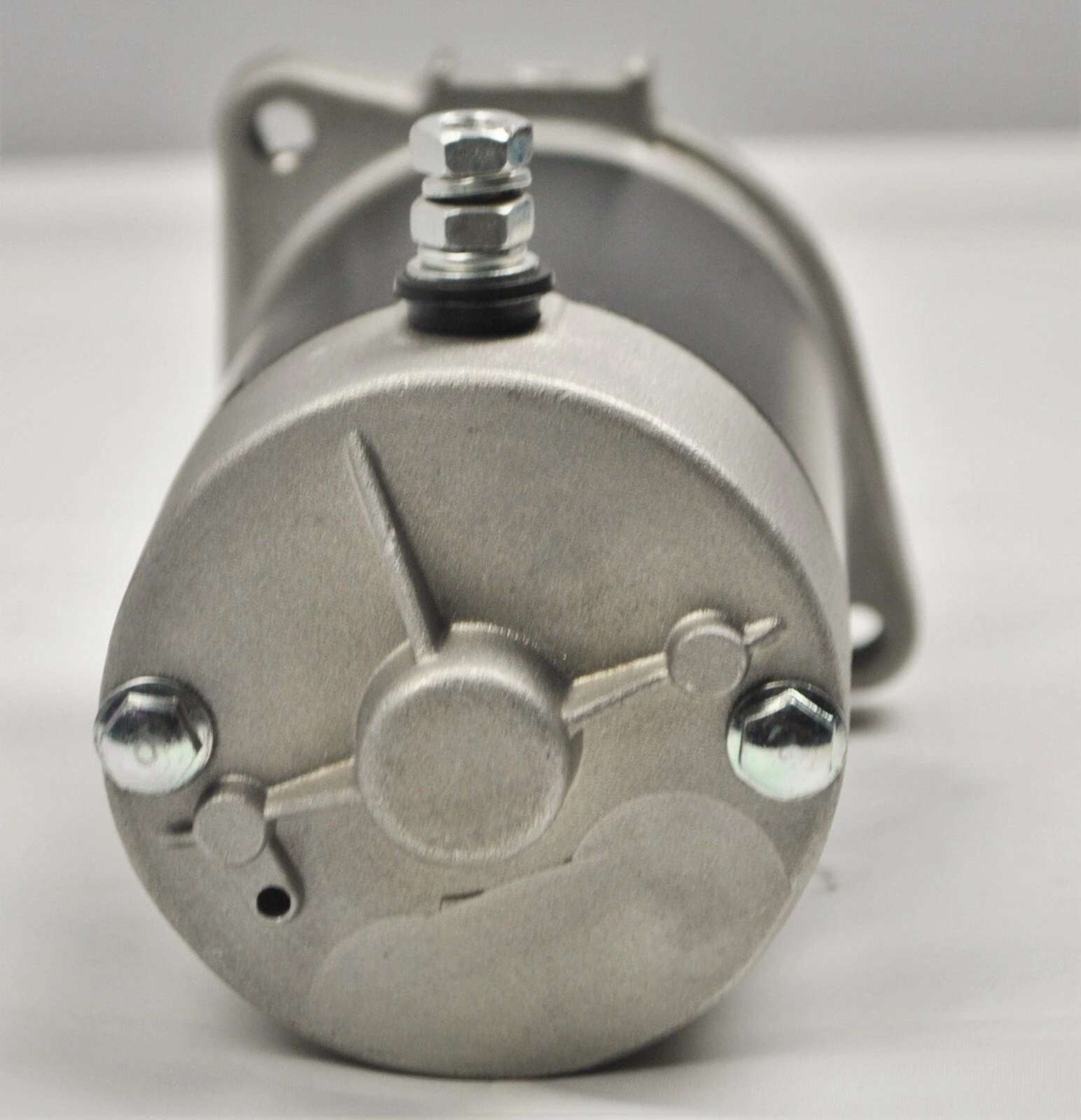

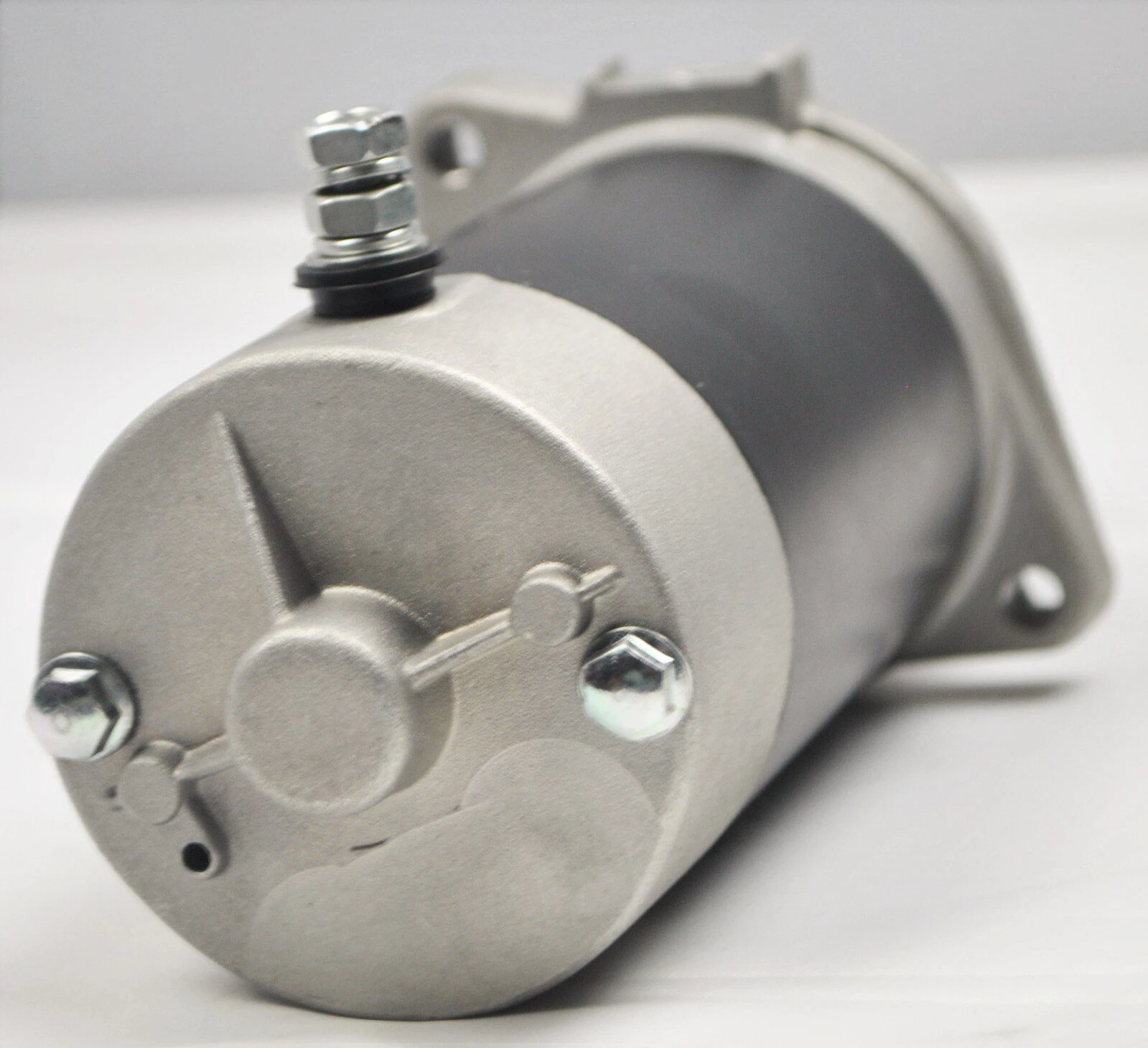

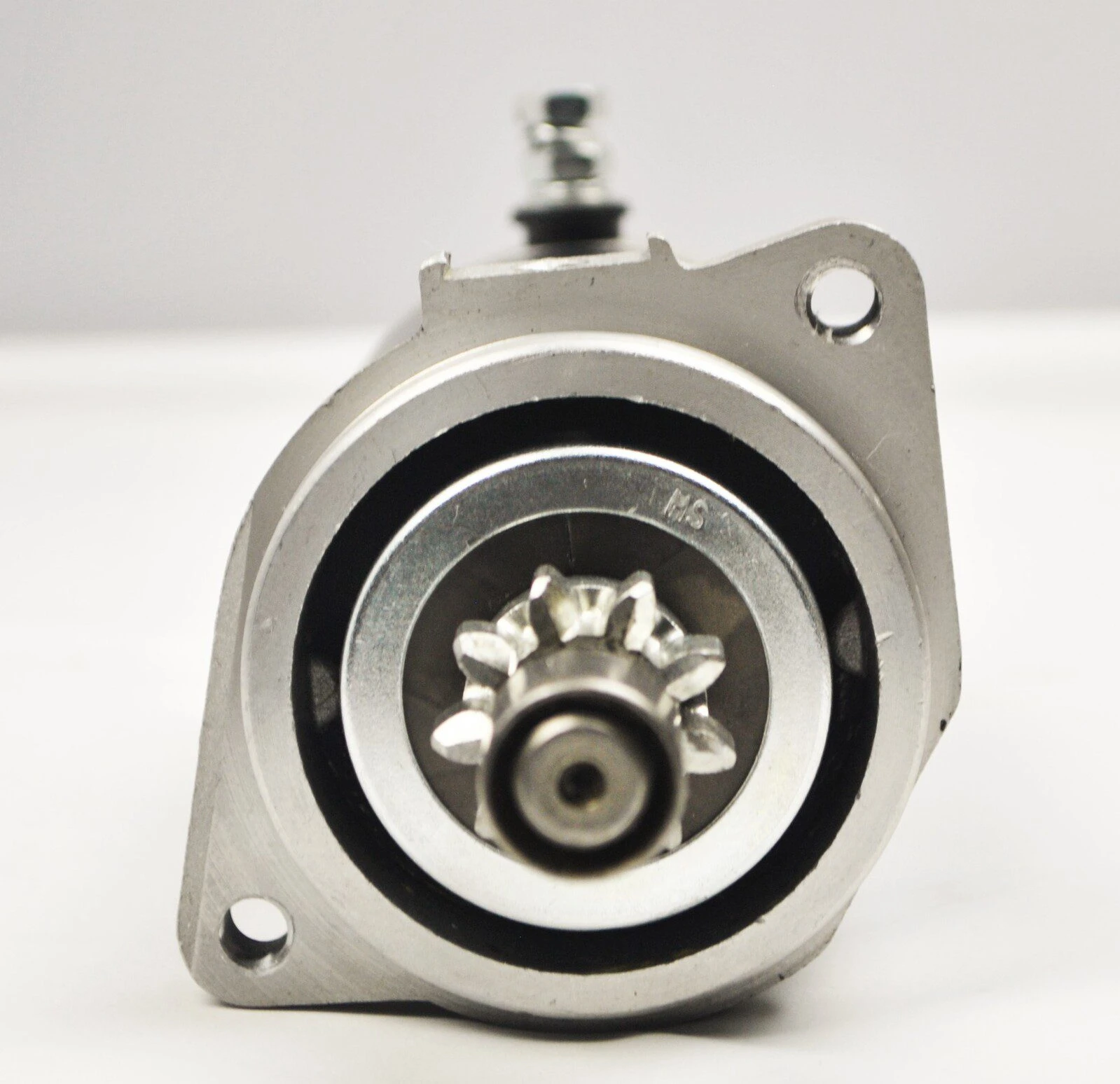

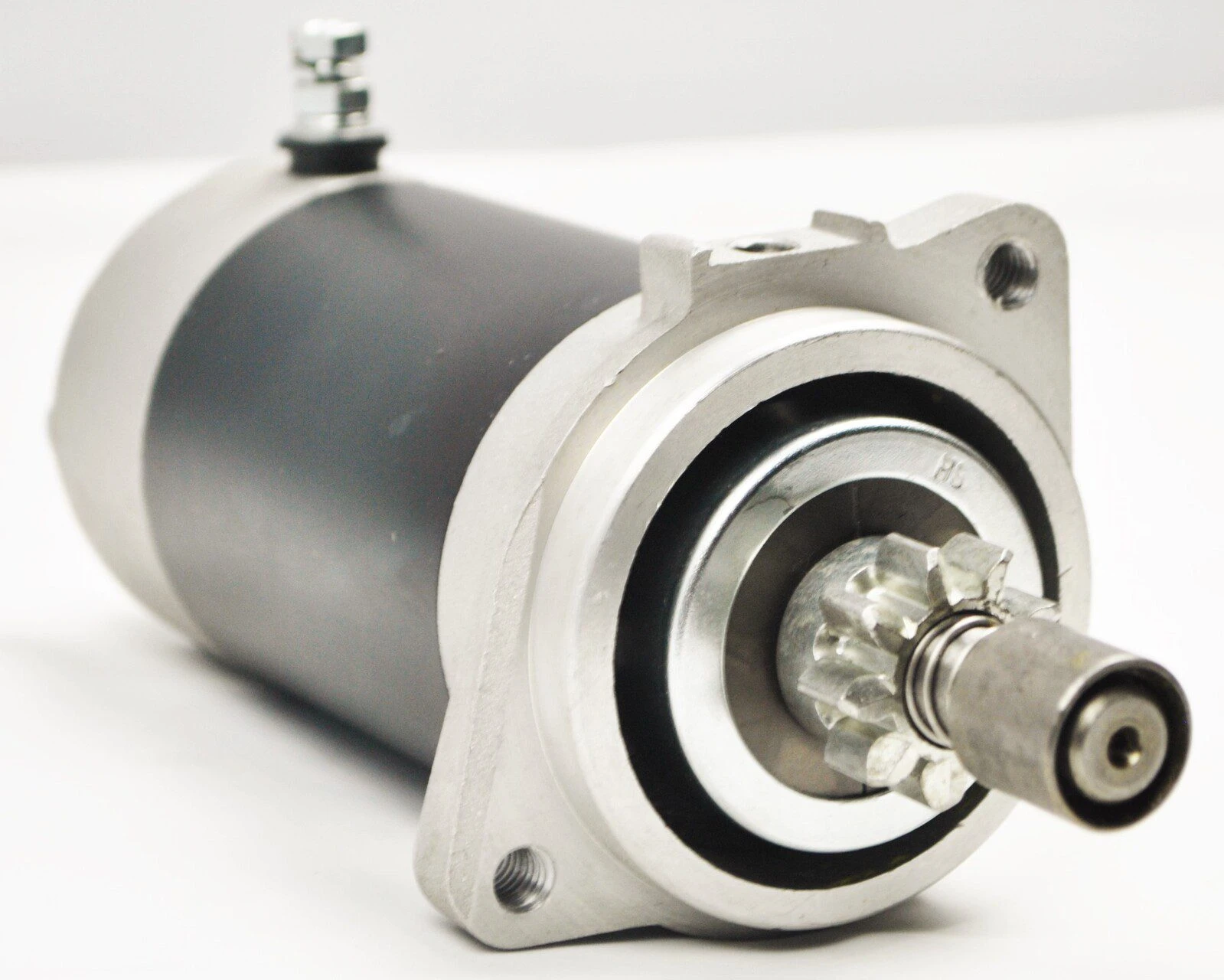

Starter Motor For Suzuki, Nissan, Tohatsu, Hitachi, Mercury Marine DT40 DT30
SKU: 18319
$199.95
In stock
6 in stock
Product information
| Weight | 3 kg |
|---|---|
| Dimensions | 30 × 30 × 30 cm |
Description
Item Specifics:
| Specific Type | Specific Value |
| Type | Starter |
| Suit these brands | Tohatsu, Hitachi, Suzuki, Mercury Marine |
| Cross Reference Numbers | 3C8-76010-1, 3C8-76010-1M, |
| MODEL | 20elh, DT40EL, EF, msf30, msf25, MD40, MD50, 70 |
| Manufacturer Part Number |
31100-94400, 31100-94401, 31100-94402, 31100-96310
|
| MPN | S108-112, S108-120, S108-120N, S108-94 |
| voltage | 12v |
| Number of Teeth | 9 |
| OE/OEM Number | 31100-96311, 50-853805T03, 853805T03 |
| Material | steel |
Reference:
| Hitachi | S108-112, S108-120, S108-120N, S108-94 |
| Lester | 18319 |
| Mercury Marine | 50-853805T03, 853805T03 |
| Suzuki | 31100-94400, 31100-94401, 31100-94402, 31100-96310, 31100-96311 |
| Tohatsu | 3C8-76010-1, 3C8-76010-1M |
Specification:
| Description: | Starter |
| OEM(s): | Hitachi, Suzuki |
| Voltage: | 12 |
| Condition: | New |
| Rotation: | CCW |
| Starter Type: | DD |
| Number of Teeth: | 9 |
| Gear OD: | 1.134in / 28.8mm |
| Mtg Ear 1 Hole: | M8x1.25 Threaded |
| Mtg Ear 2 Hole: | M8x1.25 Threaded |
| Warranty: | 1 Year |
| Weight: | 4.8 lbs / 2.18 kg |
Application:
| Make | Model | Engine | Years |
| Mercury Marine | 20 | 21CI | 2009 |
| Mercury Marine | 20EH | 21CI | 2009 |
| Mercury Marine | 20EL | 21CI | 2009 |
| Mercury Marine | 20ELH | 21CI | 2009 |
| Mercury Marine | 20ELHPT | 21CI | 2009 |
| Mercury Marine | 20ELPT | 21CI | 2009 |
| Mercury Marine | 20EPT | 21CI | 2009 |
| Nissan | NS40 | 2-Stroke | 1992 - 2003 |
| Nissan | NS50 | 2-Stroke | 1992 - 2003 |
| Nissan | NS60 | 2-Stroke | 1996 - 2003 |
| Nissan | NS70 | 2-Stroke | 1996 - 2003 |
| Nissan | NSD40 | TLDI | 2001 - 2006 |
| Nissan | NSD50 | TLDI | 2001 - 2006 |
| Nissan | NSD70 | TLDI | 2003 - 2006 |
| Nissan | NSD90 | TLDI | 2001 - 2006 |
| Nissan | NSF15 | 4-Stroke | 2000 - 2008 |
| Nissan | NSF18 | 4-Stroke | 2001 - 2006 |
| Nissan | NSF20 | 2008 | |
| Nissan | NSF25 | 4-Stroke | 2002 - 2005 |
| Nissan | NSF30 | 4-Stroke | 2002 - 2005 |
| Nissan | NSF9.9 | 4-Stroke | 2000 - 2008 |
| Suzuki | DT20EL | 27CI | 1986 - 1988 |
| Suzuki | DT20ES | 27CI | 1986 - 1988 |
| Suzuki | DT25EL | 27CI | 1980 - 1982 |
| Suzuki | DT25EL | 30CI | 1985 - 1988 |
| Suzuki | DT25ES | 27CI | 1980 - 1982 |
| Suzuki | DT25ES | 30CI | 1985 - 1988 |
| Suzuki | DT30EL | 30CI | 1983 - 1984 |
| Suzuki | DT30ES | 30CI | 1983 - 1984 |
| Suzuki | DT30L | 30CI | 1985 |
| Suzuki | DT30RL | 30CI | 1986 - 1987 |
| Suzuki | DT30RS | 30CI | 1986 - 1987 |
| Suzuki | DT30S | 30CI | 1985 |
| Suzuki | DT35CRL | 42CI | 1987 - 1989 |
| Suzuki | DT35CRS | 42CI | 1987 - 1989 |
| Suzuki | DT35TCL | 42CI | 1987 - 1989 |
| Suzuki | DT40CEL | 42CI | 1989 - 1990 |
| Suzuki | DT40CES | 42CI | 1989 - 1990 |
| Suzuki | DT40CRL | 42CI | 1986 - 1998 |
| Suzuki | DT40CRS | 42CI | 1986 - 1998 |
| Suzuki | DT40ECL | 42CI | 1984 - 1985 |
| Suzuki | DT40ECS | 42CI | 1984 - 1985 |
| Suzuki | DT40EL | 37CI | 1980 - 1983 |
| Suzuki | DT40ES | 37CI | 1980 - 1983 |
| Suzuki | DT40TCL | 42CI | 1987 - 1998 |
| Suzuki | PU40 | 42CI | 1992 - 1995 |
| Suzuki | PU55Jet | 54CI | 1989 - 1990 |
| Tohatsu | M40 | 2-Stroke | 1992 - 2003 |
| Tohatsu | M50 | 2-Stroke | 1992 - 2003 |
| Tohatsu | M60 | 2-Stroke | 1996 - 2003 |
| Tohatsu | M70 | 2-Stroke | 1996 - 2003 |
| Tohatsu | MD40 | TLDI | 2001 - 2006 |
| Tohatsu | MD50 | TLDI | 2001 - 2006 |
| Tohatsu | MD70 | TLDI | 2003 - 2006 |
| Tohatsu | MD90 | TLDI | 2001 - 2006 |
| Tohatsu | MFS15 | 4-Stroke | 2000 - 2008 |
| Tohatsu | MFS18 | 4-Stroke | 2001 - 2006 |
| Tohatsu | MFS9.9 | 4-Stroke | 2000 - 2008 |
| Tohatsu | MSF20 | 2008 | |
| Tohatsu | MSF25 | 4-Stroke | 2002 - 2005 |
| Tohatsu | MSF30 | 4-Stroke | 2002 - 2005 |
