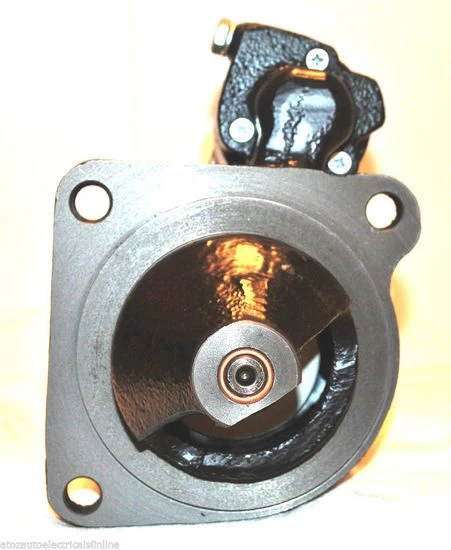

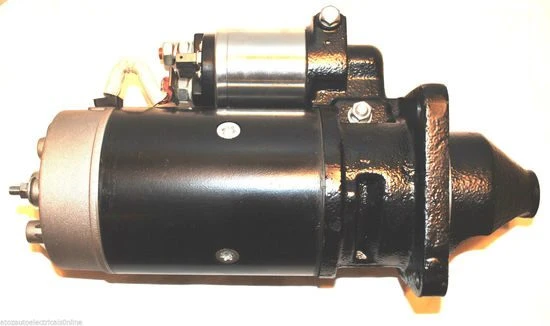

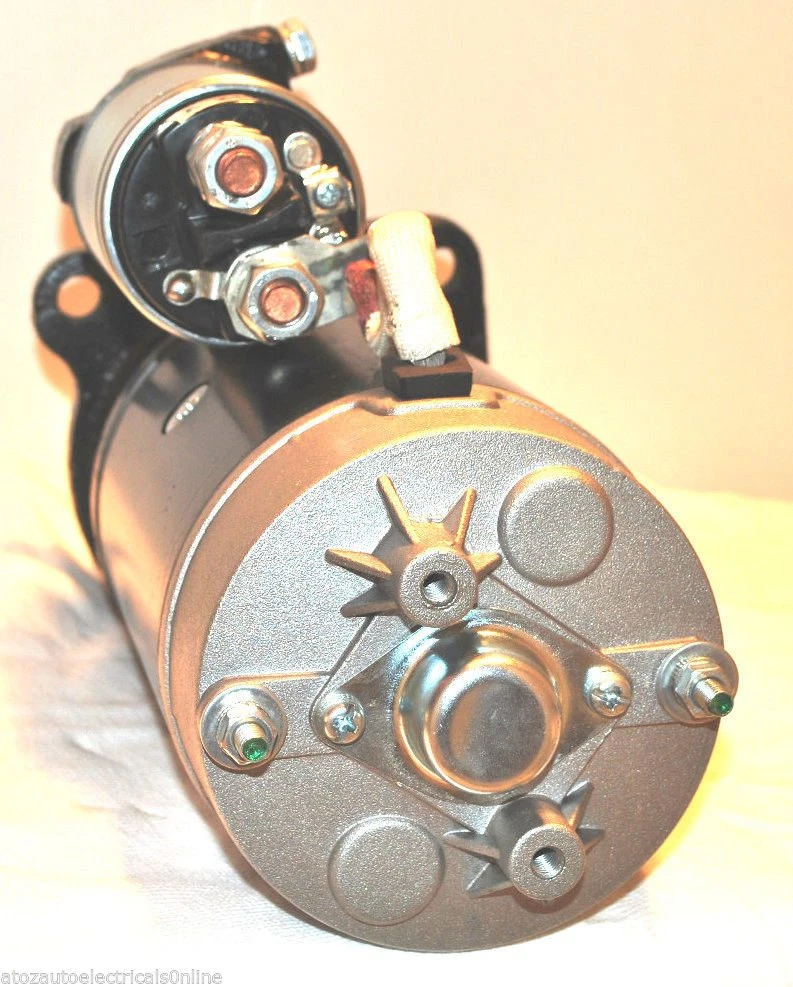

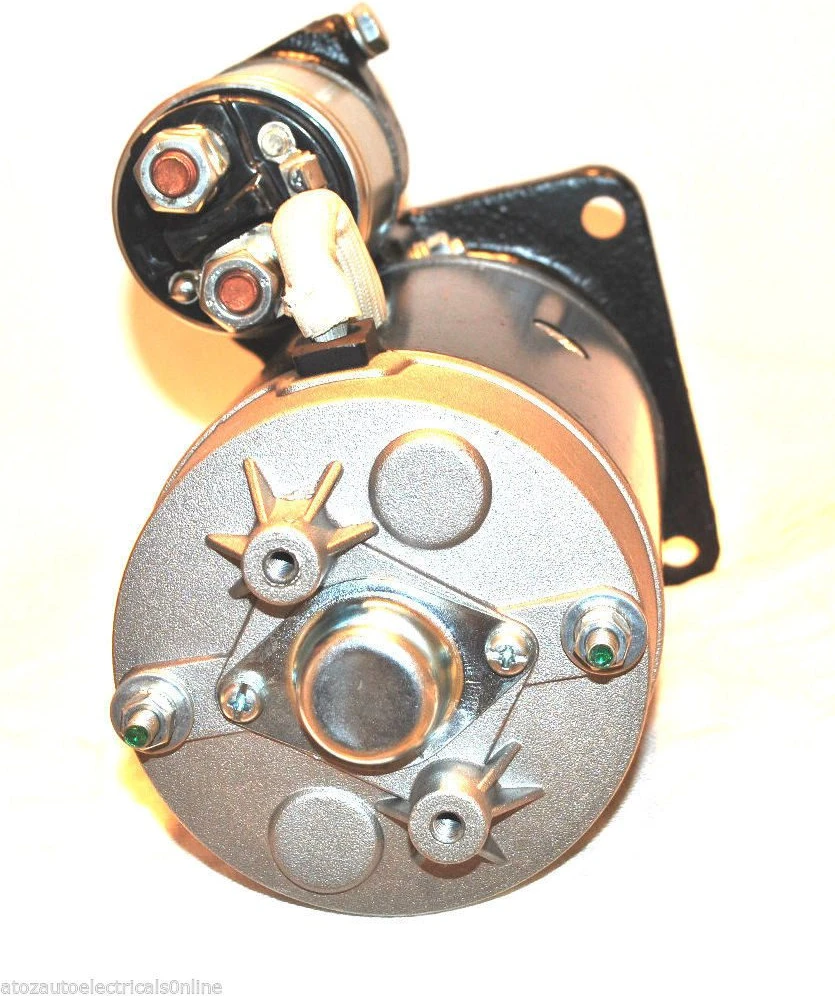

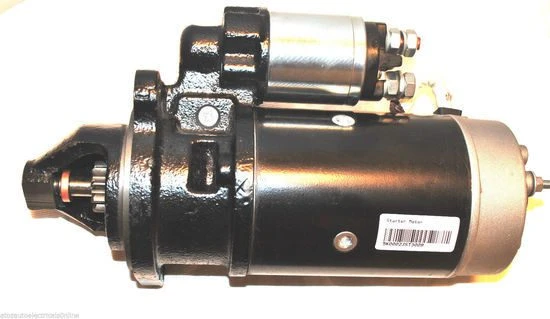

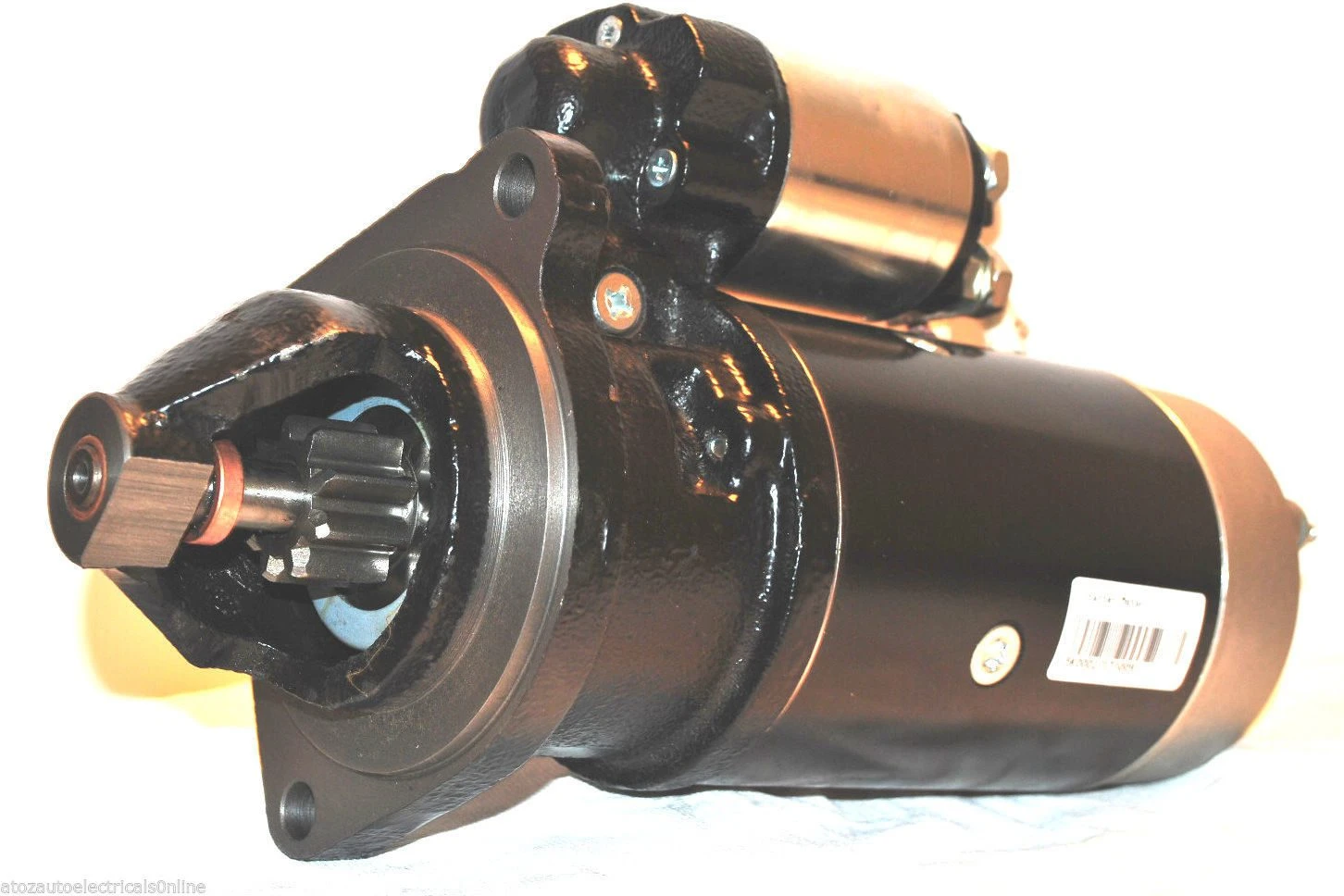

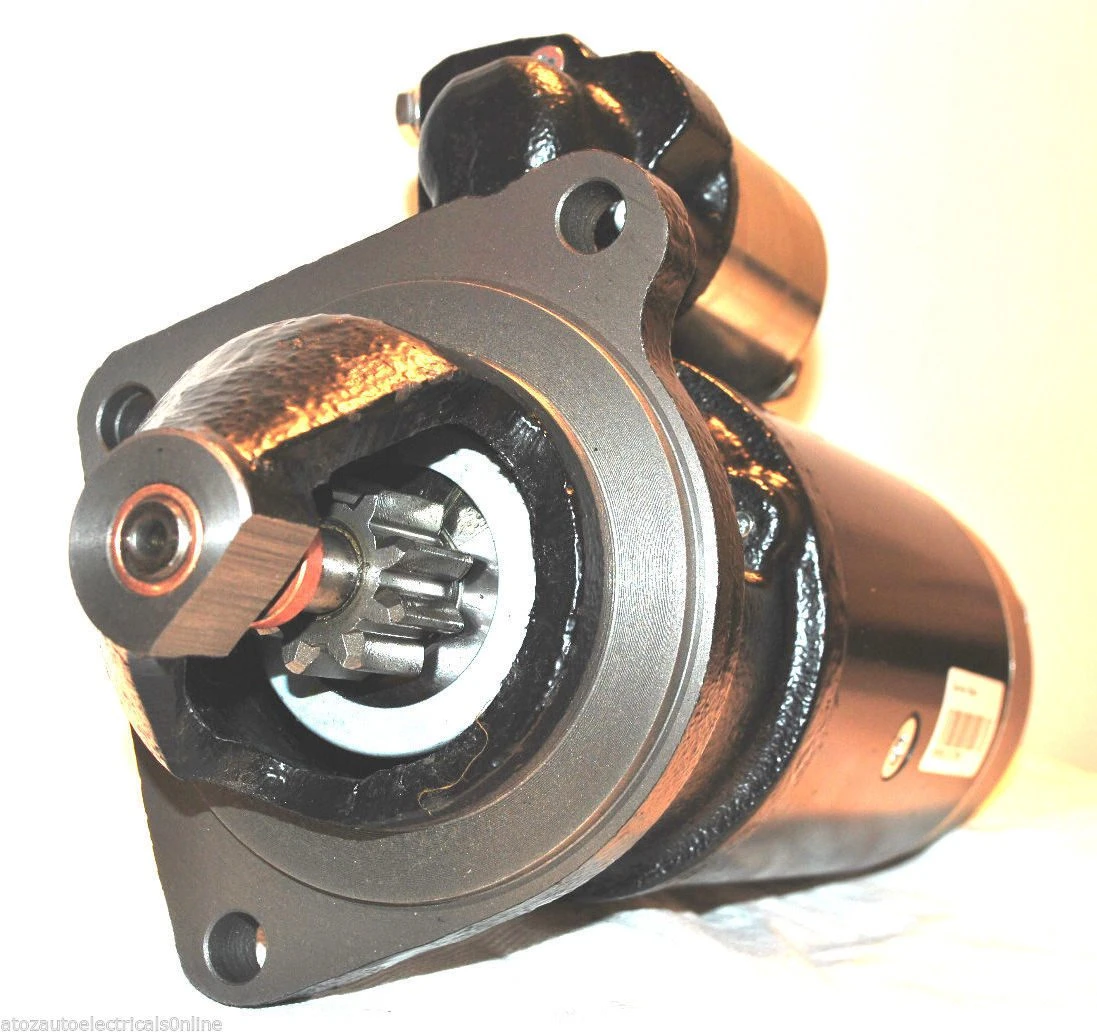

Starter motor to suit New Holland, Fiat, Iveco Laverda 12v, 9T, 3kw LRS847 S0847
SKU: JST3009
$389.00
Out of stock
Out of stock
Product information
| Weight | 15.0000 kg |
|---|---|
| Dimensions | 50 × 50 × 50 cm |
Description
Item Specifics:
| Specific Type | Specific Value |
| Type | Starter |
| Suit these brands | Fiat heston, iveco, New holland, Magnetti marelli, laverda |
| Cross Reference Numbers | LRS847, S0847, S4538, 0001359021, 0001359102, 0001367028 |
| Cross Reference Numbers 2 | 88205006, 30380301, 63213815, 63216825, 63216826, 63216827, |
| Cross Reference Numbers 3 | MT38TB, MT68A, MT68AA, MT68AB, MT68AC, MT68AD |
| Cross Reference Numbers 4 | 63216831, 943216831, MSN219, MT38QA, MT38QB |
Reference:
| Bosch | 0001359021, 0001359102, 0001367028, 0001367082, 0986011220, 0986011221, SR914X |
| Fiat | 2022506, 4699705, 4737755, 4755109, 4763996, 88205006 |
| Lester | 18029 |
| Letrika/MAHLE | 11.130.140, 11.130.199, 11.130.322, 11.130.403, 11.130.410, AZJ3110, AZJ3116, AZJ3517, AZJ3535, AZJ3582 |
| Lucas | LRS847, S0847, S4538 |
| Magneti Marelli | 30380301, 63213815, 63216825, 63216826, 63216827, 63216831, 943216831, MSN219, MT38QA, MT38QB, MT38TB, MT68A, MT68AA, MT68AB, MT68AC, MT68AD |
Specification:
| Description | Starter |
| OEM(s) | Bosch, Letrika/MAHLE |
| Family | Letrika/MAHLE AZJ |
| Voltage | 12V |
| Power | 3kW / 4.02 HP |
| Condition | New |
| Rotation | CW |
| Warranty | 1 Year |
| Number of Teeth | 9 |
| Gear OD | 1.378 in / 35 mm |
| Mounting Hole 1 | 11.7 mm Unthreaded |
| Mounting Hole 2 | 11.7 mm Unthreaded |
| Mounting Hole 3 | 11.7 mm Unthreaded |
| Weight | 32.475 lbs / 14.76 kg |
Applications:
| Make | Model | Engine | Years |
| Aifo | 8041 | 3.7L Diesel | 1979 - 1980 |
| Aifo | 8061 | 5.5L Diesel | 1978 - 1983 |
| Fiat-Allis | 545B | Diesel | 1971 - 1983 |
| Fiat-Allis | FG-65A | Diesel | 1984 - 1988 |
| Fiat-Hesston | 55.85 | 2.7L Diesel | 1992 |
| Fiat-Hesston | 65.46 | 3.6L Diesel | 1988 |
| Fiat-Hesston | 65.56 | 3.6L Diesel | 1990 |
| Fiat-Hesston | 65.66 | 3.6L Diesel | 1987 |
| Fiat-Hesston | 65.88 | 3.6L Diesel | 1989 |
| Fiat-Hesston | 65.9 | 3.6L Diesel | 1987 |
| Fiat-Hesston | 70.56 | 3.6L Diesel | 1990 |
| Fiat-Hesston | 70.65 | 3.6L Diesel | 1988 - 1989 |
| Fiat-Hesston | 70.66 | 3.6L Diesel | 1984 |
| Fiat-Hesston | 70.75 | 3.6L Diesel | 1989 |
| Fiat-Hesston | 70.76 | 3.6L Diesel | 1990 |
| Fiat-Hesston | 70.86 | 3.6L Diesel | 1992 |
| Fiat-Hesston | 70.88 | 3.6L Diesel | 1989 |
| Fiat-Hesston | 70.9 | 3.6L Diesel | 1989 |
| Fiat-Hesston | 80.65 | 3.9L Diesel | 1988 - 1989 |
| Fiat-Hesston | 80.66 | 3.9L Diesel | 1988 |
| Fiat-Hesston | 80.75 | 3.9L Diesel | 1989 |
| Fiat-Hesston | 80.88 | 3.9L Diesel | 1989 |
| Fiat-Hesston | 80.9 | 3.9L Diesel | 1988 |
| Fiat-Hesston | 82.86 | 3.9L Diesel | 1992 |
| Fiat-Hesston | 85.55 | 3.9L Diesel | 1988 - 1989 |
| Fiat-Hesston | 85.9 | 3.9L Diesel | 1991 |
| Iveco | Z Series | — | 1983 |
