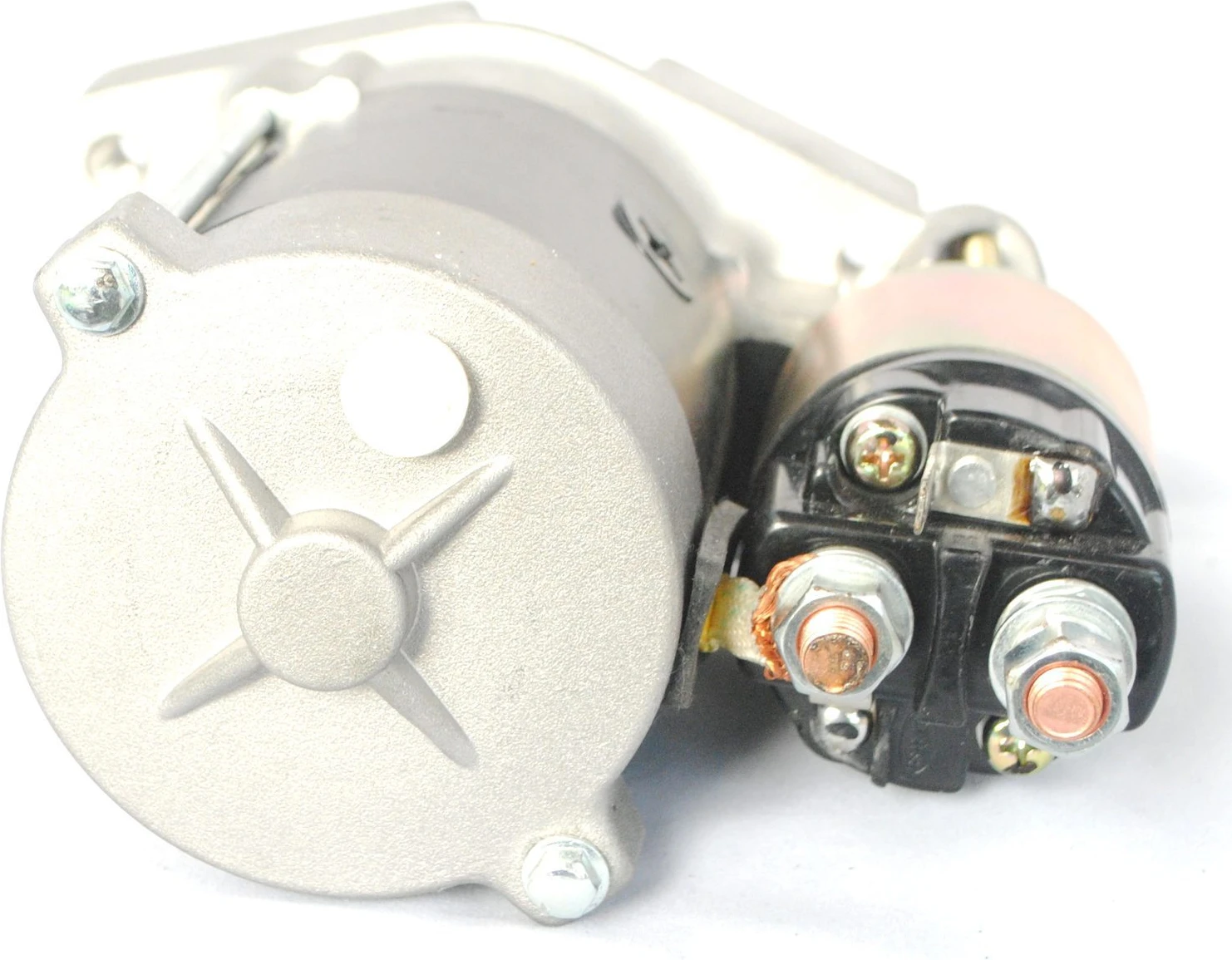

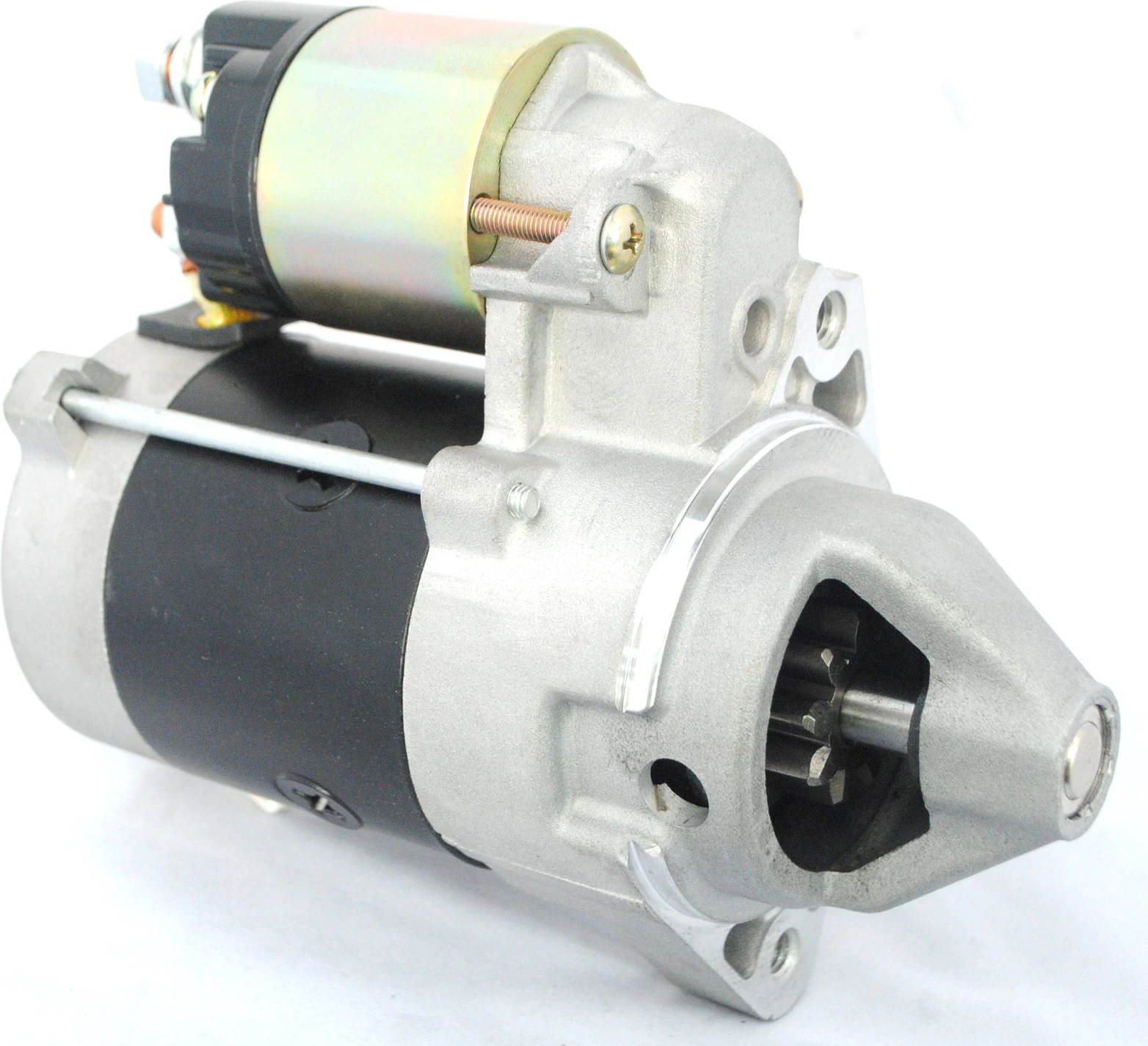

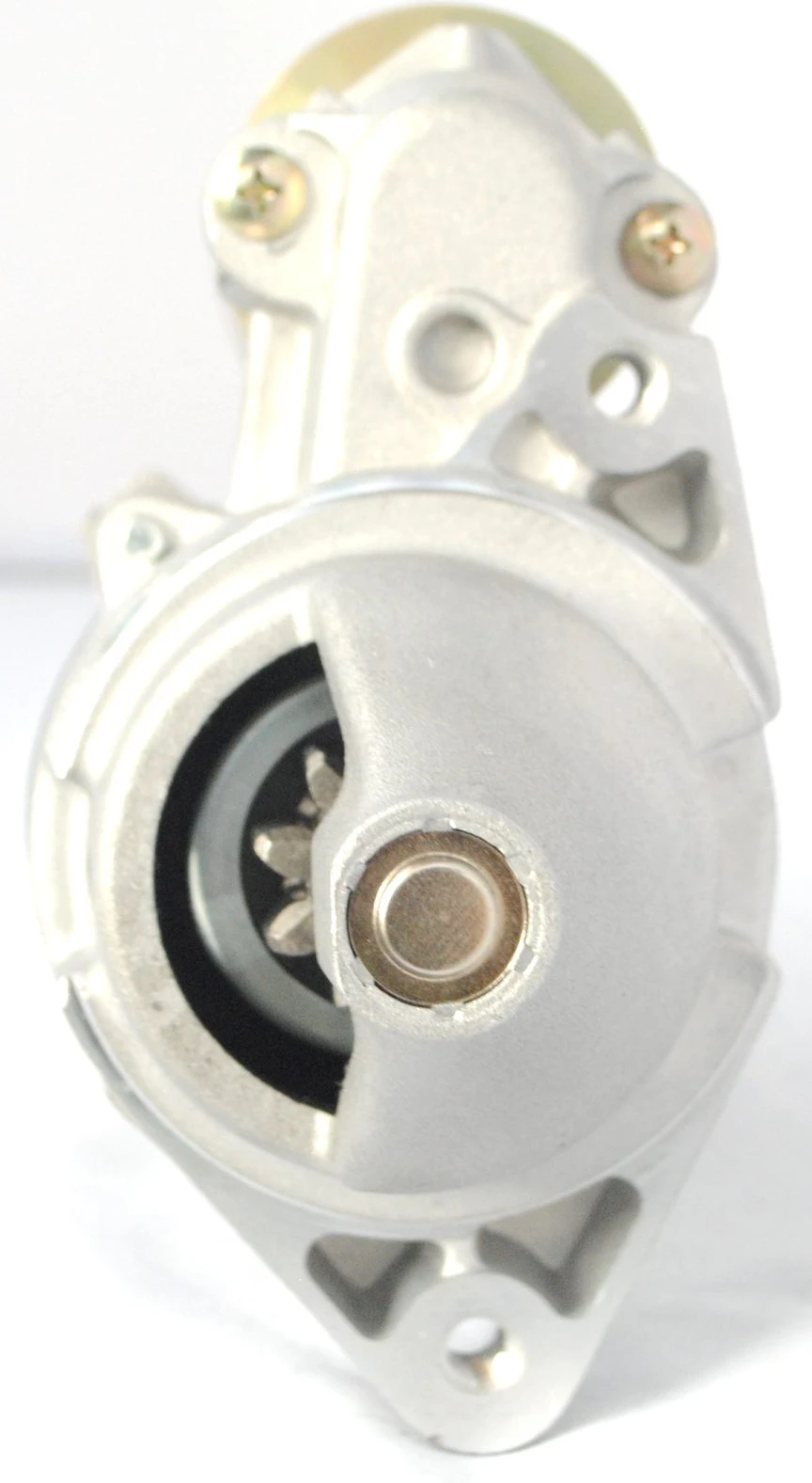

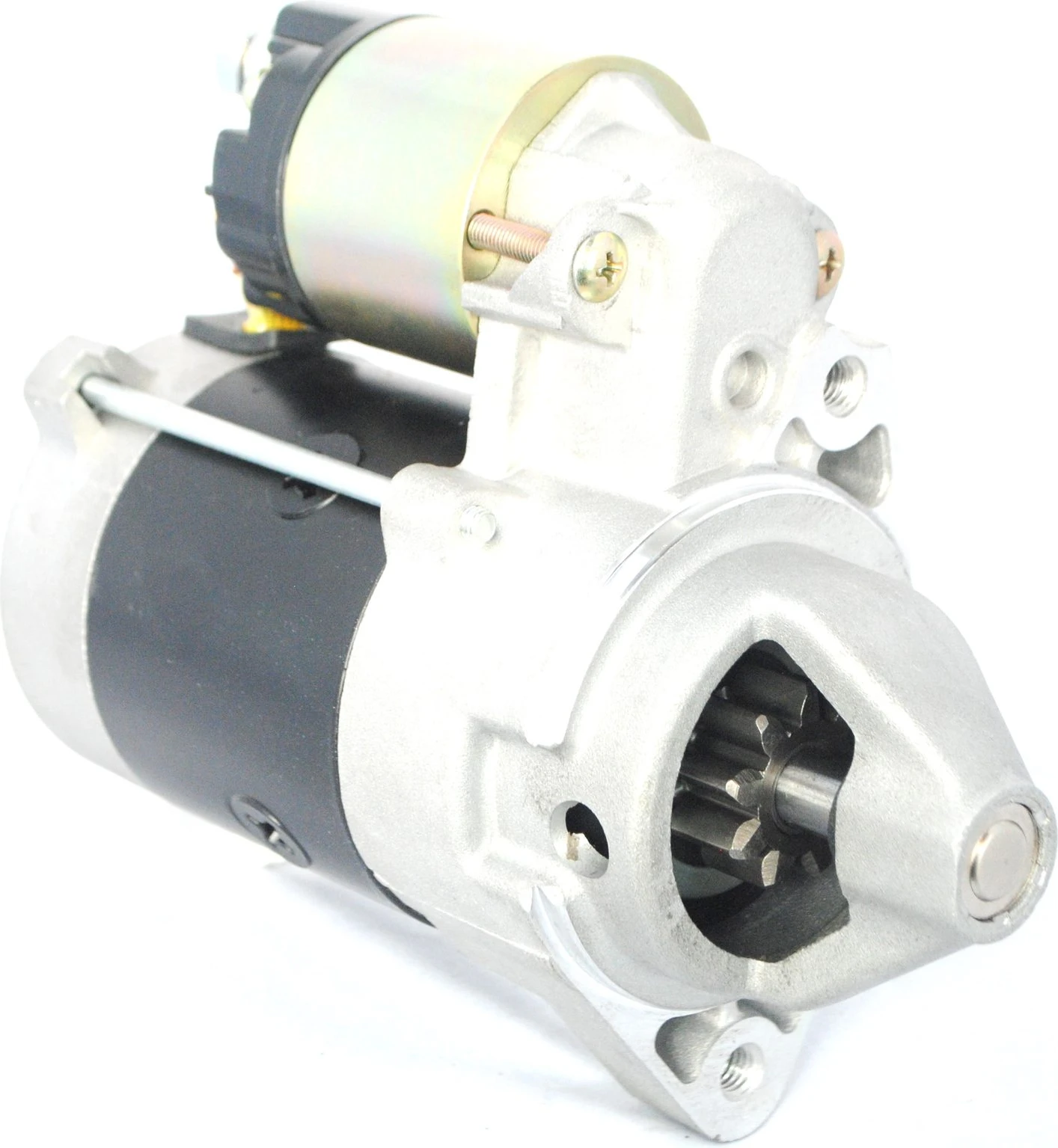

Starter Suit Johndeere Lawn Tractor Kawasaki 17HP GS75 GT262 GT275 F525 FC540V F710
SKU: 18048
$204.95
In stock
7 in stock
Product information
| Weight | 4.00 kg |
|---|---|
| Dimensions | 30 × 30 × 30 cm |
Description
Item Specifics:
| Specific Type | Specific Value |
| Type | Starter |
| Power Source | Electric |
| Cross Reference Numbers | 1280004020, 21163-2073, 12498-63010, 128000-4020 |
| Engine Model | FC540V, T1700H, T1700HXgt275, HD75, LX186 |
| MODEL | Johndeere GT262 |
| Manufacturer Part Number | 211632073 |
| MPN | AM104559 |
| voltage | 12 |
| Number of Teeth | 9 |
| Number in Pack | 1 |
| Horsepower | 17hp |
| Compatible Brand | Kawasaki, Kubota, John Deere |
| OE/OEM Number | 21163-2073A, 1249863010 |
| Material | steel |
| Compatible Model | 265, 325, f525, f710, gs75, gt262, gt265 |
Reference:
| Denso | 12800079-40 97128097-94 |
| John Deere | AM108615 |
| Kawasaki | 21163-2093, 21163-2145 |
| Kubota | 12499630-10 |
| Lester | 18048 |
Specification:
| Description: | Starter |
| OEM(s): | Denso, John Deere, Kawasaki |
| Family: | Denso GA |
| Voltage: | 12 |
| Power: | 0.7kW / 0.94HP |
| Condition: | New |
| Rotation: | CCW |
| Starter Type: | DD |
| Number of Teeth: | 9 |
| Gear OD: | 1.142in / 29mm |
| Mtg Ear 1 Hole: | M8-1.25 Threaded |
| Mtg Ear 2 Hole: | M8-1.25 Threaded |
| Warranty: | 1 Year |
| Notes: | Registry Diameter 75mm Mounting Hole C to C 102.5mm |
| Weight: | 7.14 lbs / 3.25 kg |
Applications:
| Make | Model | Engine | Years |
| John Deere | 180 | 17HP | 1986 - 1990 |
| John Deere | 185 | 17HP | 1986 - 1990 |
| John Deere | 260 | 17HP | 1988 - 1991 |
| John Deere | 265 | 17HP | 1988 - 1994 |
| John Deere | 325 | 1995 | |
| John Deere | 325 | 17HP | 1995 |
| John Deere | F525 | 17HP | 1990 |
| John Deere | F710 | 17HP | 1991 |
| John Deere | GS75 | 17HP | 1997 - 2003 |
| John Deere | GT262 | 17HP | 1992 - 1996 |
| John Deere | GT262 | Kawasaki | 1995 |
| John Deere | GT265 | Kawasaki | 1995 |
| John Deere | GT275 | 17HP | 1995 - 1996 |
| John Deere | GT275 | Kawasaki | 1995 |
| John Deere | HD75 | 17HP | 1997 - 2003 |
| John Deere | LX186 | 17HP | 1991 |
| Kawasaki | FC540V | - | |
| Kubota | T1700H | GH540V | 1992 - 1995 |
| Kubota | T1700HX | GH540V | 1992 - 1995 |
