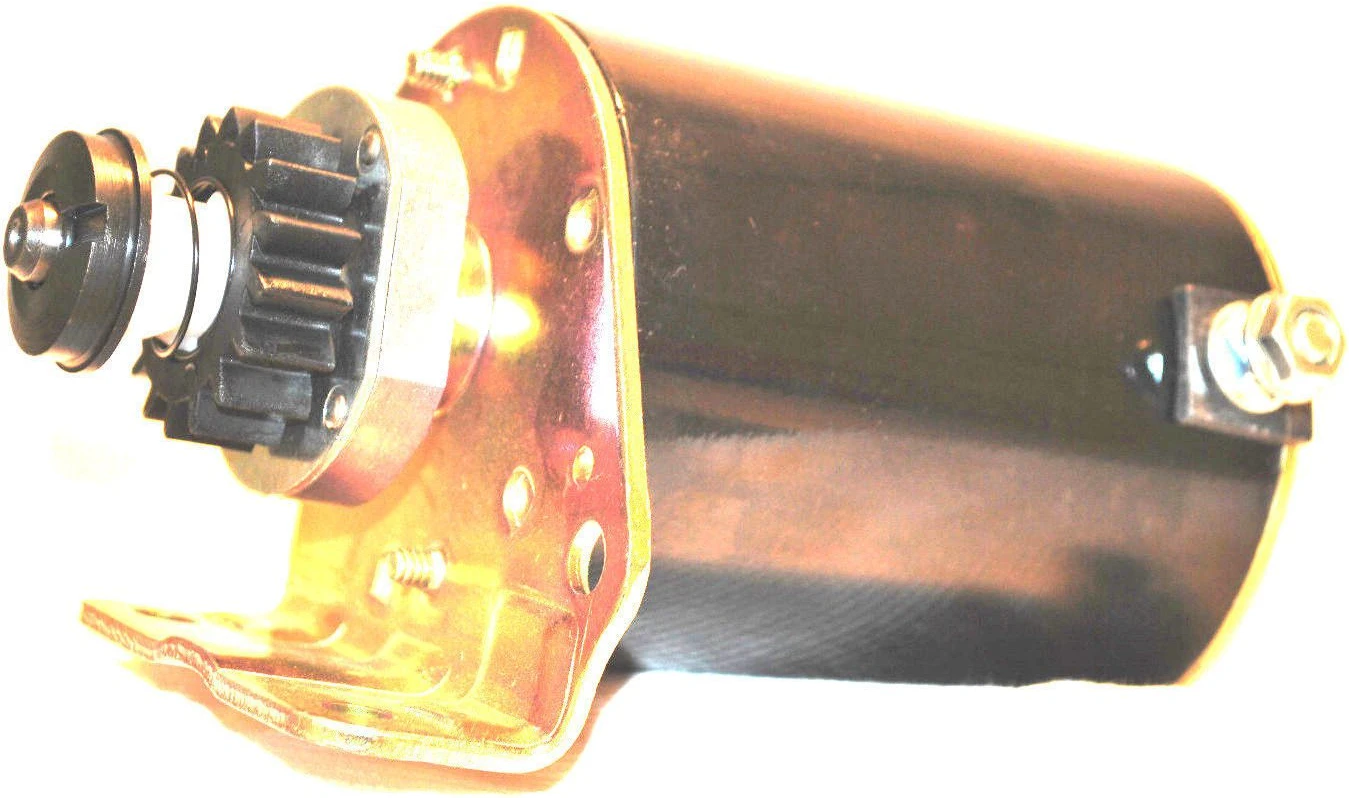

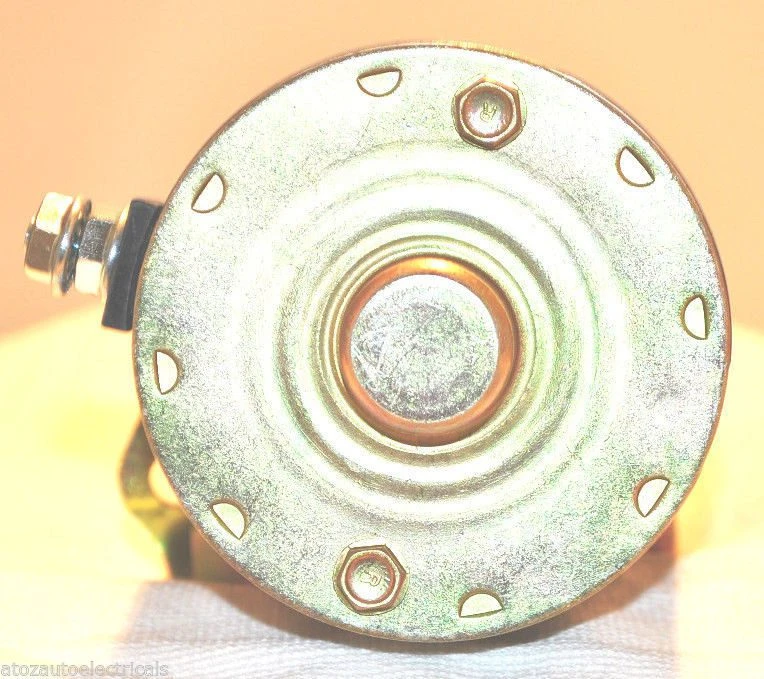

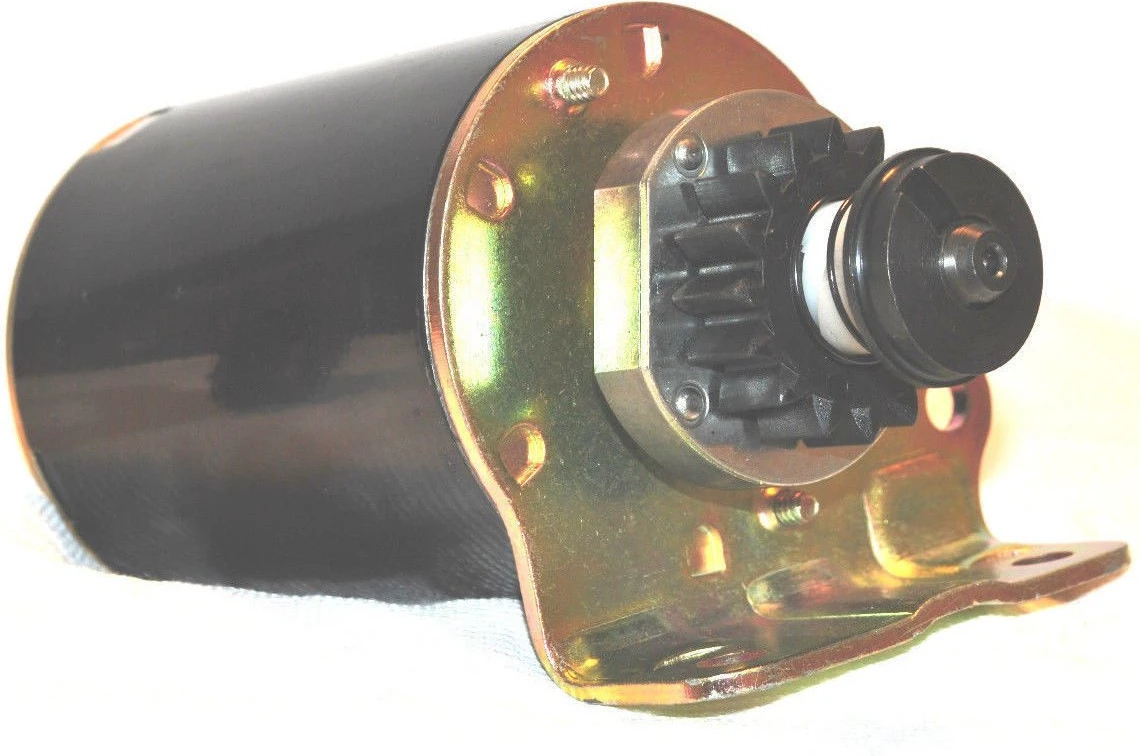

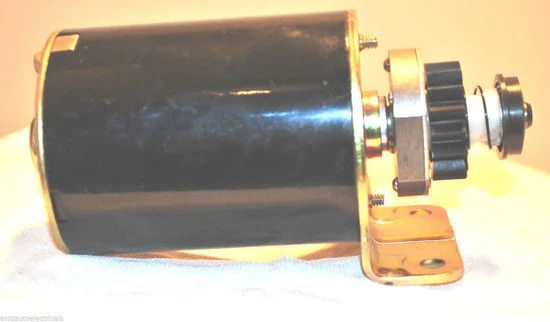

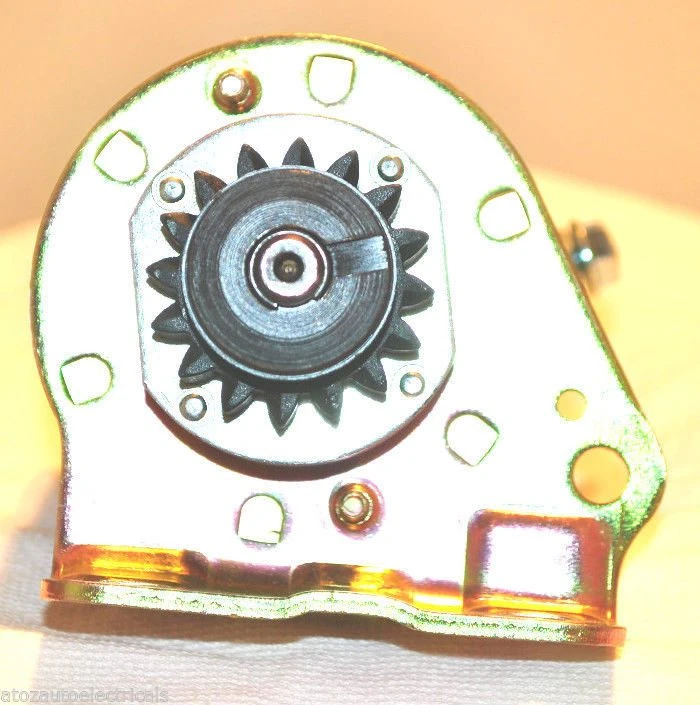

STARTER MOTOR TO FIT BRIGGS AND STRATTON 16 TOOTH RIDE ON MOWER 5 TO 16 HP
SKU: N22
$69.95
Out of stock
Out of stock
Product information
| Weight | 3 kg |
|---|---|
| Dimensions | 30 × 30 × 30 cm |
Description
Reference:
| Briggs & Stratton | 390838, 391423, 435303, 491766, 693054 |
| John Deere | LG497595 |
| Johnson Electric | 0196540, SM01965 |
| Lester | 5742 |
Specification:
| Critical Notes | For Use with Plastic or Aluminum Flywheels Only |
| OEM(s) | Briggs & Stratton |
| Voltage | 12V |
| Condition | New |
| Rotation | Counter Clockwise (CCW) |
| Starter Type | PMDD (Permanent Magnet Direct Drive) |
| Number of Teeth | 16 |
| Gear Outer Diameter | 1.598 in / 40.6 mm |
| Mounting Ear 1 Hole | 8.1 mm Unthreaded |
| Mounting Ear 2 Hole | 8.3 mm Unthreaded |
| Mounting Ear 3 Hole | 8.3 mm Unthreaded |
| Field Case Length | 3.75 in / 95.3 mm |
| Weight | 5.14 lbs / 2.34 kg |
| Warranty | 12 Months + 12 Months (Total 24 Months) |
Applications:
| Make | Model | Engine | Years | Notes |
| Briggs & Stratton | - | Air Cooled Horizontal | - | - |
| Briggs & Stratton | - | Air Cooled Horizontal | - | - |
| Briggs & Stratton | - | Air Cooled Horizontal | - | - |
| Briggs & Stratton | - | Air Cooled Horizontal | - | - |
| Briggs & Stratton | - | Air Cooled Horizontal | - | - |
| Briggs & Stratton | - | Air Cooled Horizontal | - | - |
| Briggs & Stratton | - | Air Cooled Vertical | - | - |
| Briggs & Stratton | - | Air Cooled Vertical | - | - |
| Briggs & Stratton | - | Air Cooled Vertical | - | - |
| Briggs & Stratton | - | Air Cooled Vertical | - | - |
| Briggs & Stratton | - | Air Cooled Vertical | - | - |
| Briggs & Stratton | - | Air Cooled Vertical | - | - |
| Cub Cadet | 1300 | Gas | 1998 - 1998 |
Aluminum Ring Gear
|
| Cub Cadet | 1405 | Gas | 1998 - 1998 |
Aluminum Ring Gear
|
| John Deere | 108 | - | 1982 - 1985 |
From S/N 190001
|
| John Deere | D130 | 22HP 656cc V2 B&S Gas | 2011 - | - |
| John Deere | D140 | 22HP 656cc V2 B&S Gas | 2011 - | - |
| John Deere | D150 | 22HP 656cc V2 B&S Gas | 2011 - | - |
| John Deere | D160 | 24HP 725cc V2 B&S Gas | 2011 - | - |
| John Deere | D170 | 26HP 725cc V2 B&S Gas | 2011 - | - |
| John Deere | Europa 1338SGS | - | - | - |
| John Deere | Europa 1438GS | - | - | - |
| John Deere | Europa 1538HS | - | - | - |
| John Deere | Europa 1542GS | - | - | - |
| John Deere | Europa 1546GS | - | - | - |
| John Deere | Europa 1646HS | - | - | - |
| John Deere | GX85 | - | 1997 - | - |
| John Deere | L111 | 406577 | - | - |
| John Deere | L118 | Briggs & Stratton 406577 | - | - |
| John Deere | L118 | Briggs & Stratton 407777 | - | - |
| John Deere | LA120 | 21HP 725cc V2 B&S Gas | 2007 - 2007 | - |
| John Deere | LA135 | 22HP 656cc V2 B&S Gas | 2008 - 2010 | - |
| John Deere | LA145 | 22HP 656cc V2 B&S Gas | 2008 - 2010 | - |
| John Deere | LA155 | 22HP 656cc V2 B&S Gas | 2008 - 2010 | - |
| John Deere | LA165 | 24HP 724cc V2 B&S Gas | 2008 - 2010 | - |
| John Deere | LA175 | 26HP 724cc V2 B&S Gas | 2008 - 2010 | - |
| John Deere | Sabre 1338G | - | - | - |
| John Deere | Sabre 1438GS | - | - | - |
| John Deere | Sabre 1438HS | - | - | - |
| John Deere | Sabre 1538GS | - | - | - |
| John Deere | Sabre 1538HS | - | - | - |
| John Deere | Sabre 1542GS | - | - | - |
| John Deere | Sabre 1542HS | - | - | - |
| John Deere | Sabre 1546G | - | - | - |
| John Deere | Sabre 1646HS | - | - | - |
| John Deere | SX85 | - | 1997 - | - |
| Toro | LT11 | - | 1988 - 1989 | - |
