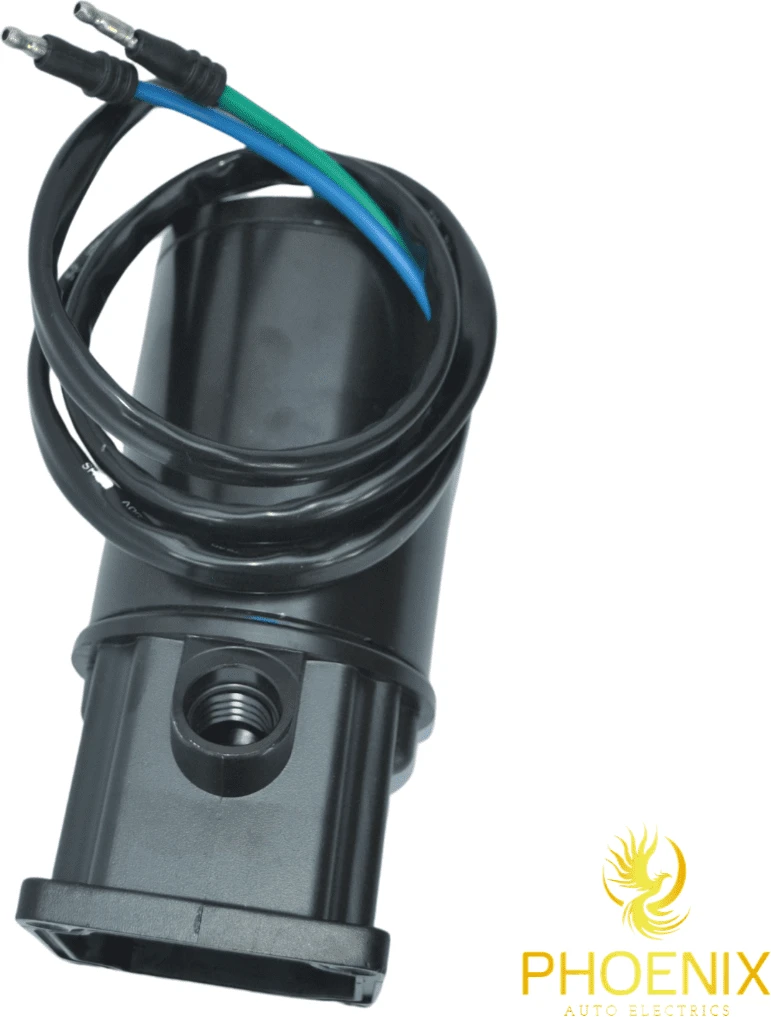

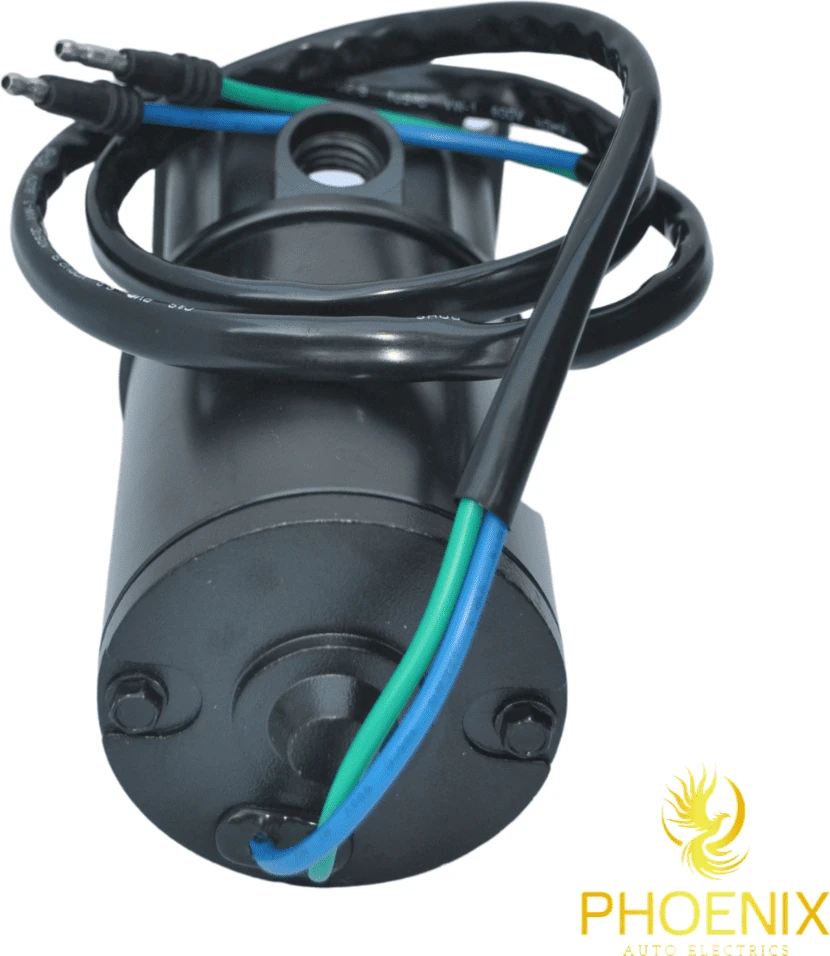

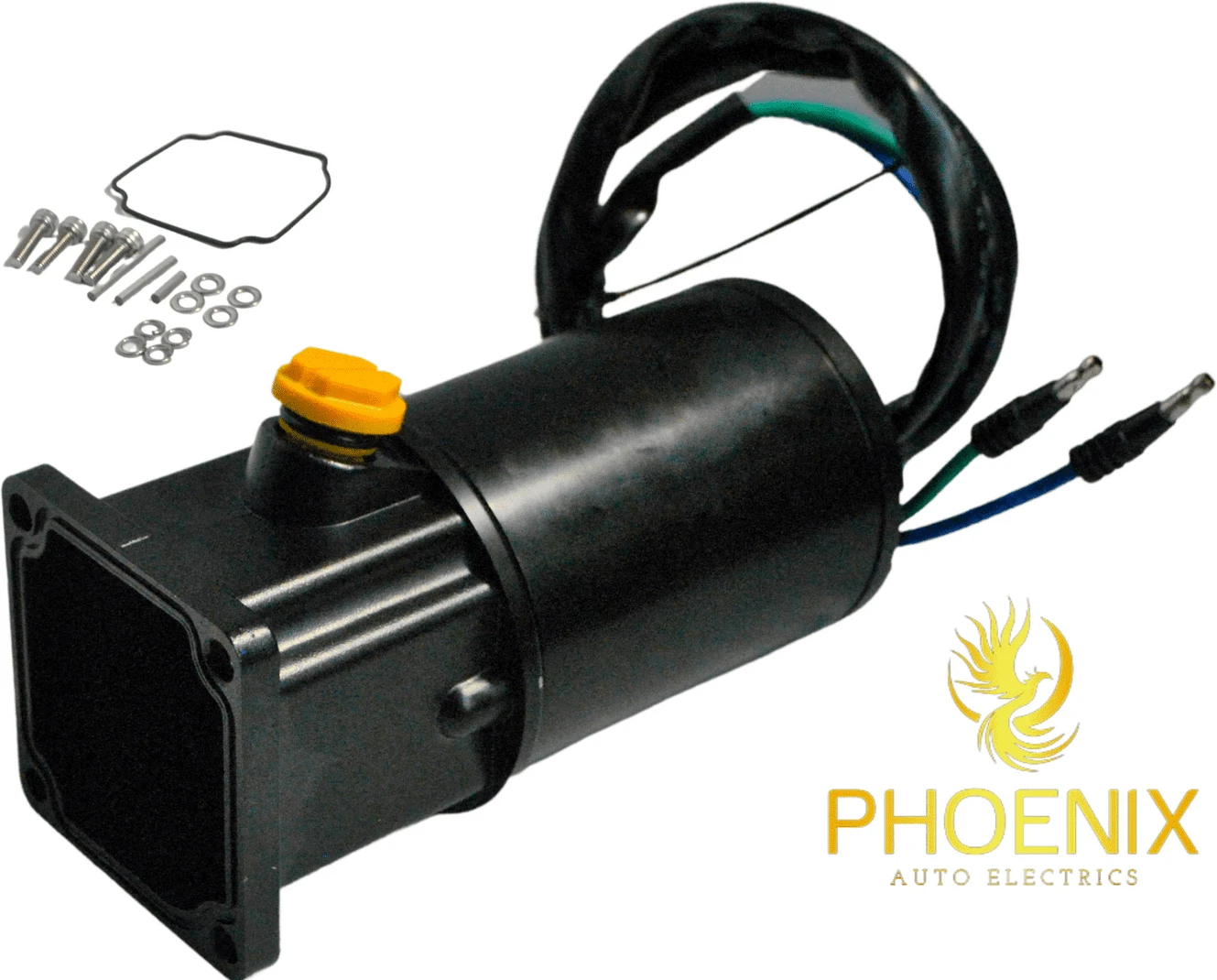

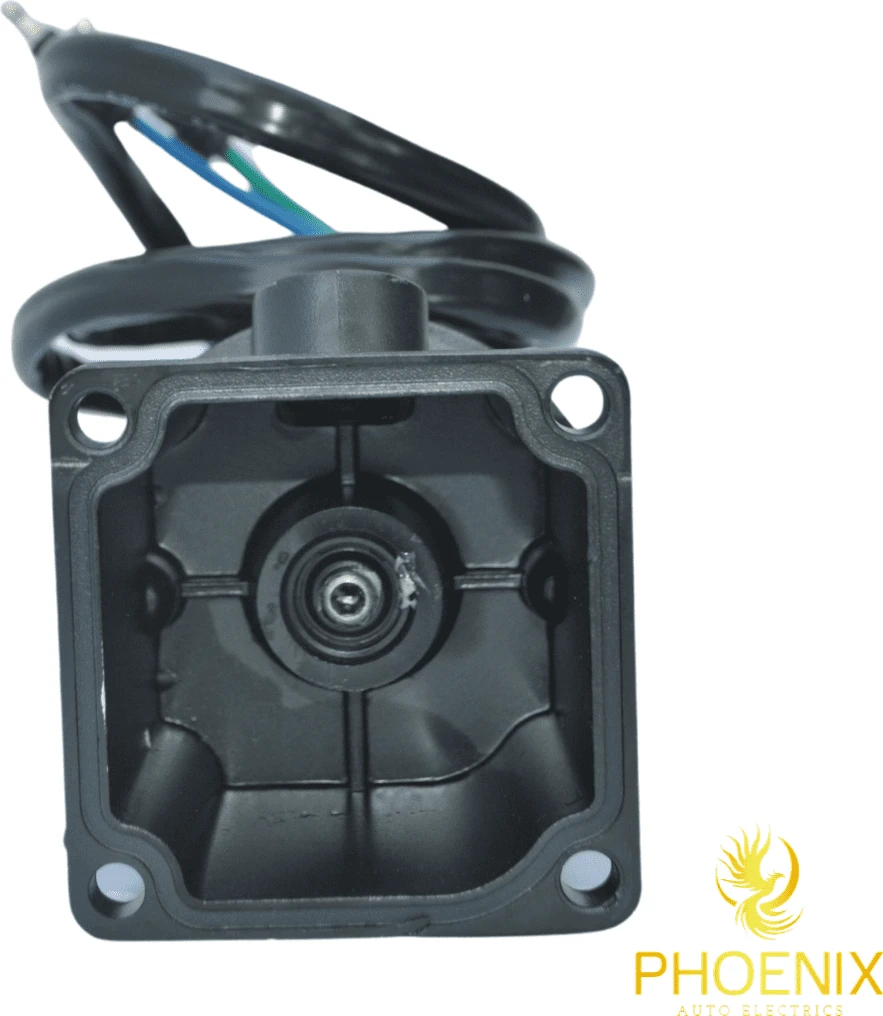

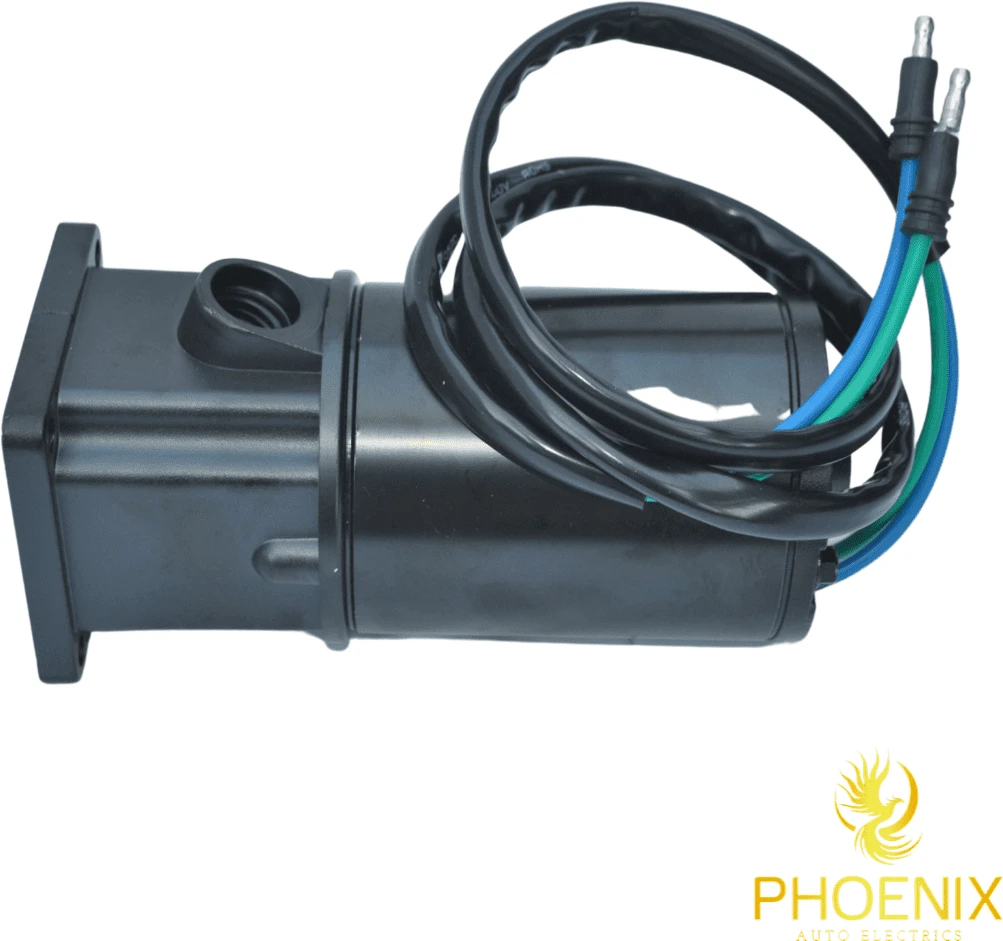

Tilt Trim Motor for Mercury Mariner, Force 50hp, 60hp, 70, 80hp 125hp – 809885A1, 809885A2
SKU: 10827
$209.95
Out of stock
Out of stock
Product information
| Weight | 3 kg |
|---|---|
| Dimensions | 20 × 20 × 20 cm |
Description
Item Specifics:
| Specific Type | Specific Value |
| Type | Tilt Trim Motor |
| Suit these brands | Mercury Marine Force |
| Cross Reference Numbers | 819479A1, 819480A1 |
| Manufacturer Part Number | 809885T2, 831447, 885654T1, 885654T2 |
| MPN | 809885A1, 809885A2, 809885T2, 811674 |
| voltage | 12v |
| Horse Power | 50, 70, 80, 80, 100, 120, 150 |
Application:
Late Model 50 - 150HP Mercury & Mariner Outboards with Single RamReference:
| Lester | 10827 |
| Mercury Marine | 809885A1, 809885A2, 809885T2, 811674, 831447, 885654T1, 885654T2 |
Specification:
| Description: | Tilt/Trim Motor |
| OEM(s): | Mercury Marine |
| Voltage: | 12 |
| Condition: | New |
| Rotation: | Reversible |
| OD: | 2.866in / 72.8mm |
| Length: | 6.89in / 175mm |
| Terminal 1 Size: | Wire |
| Terminal 2 Size: | Wire |
| Shaft: | Hollow Hex Shaft |
| Current Type: | DC |
| Warranty: | 1 Year |
| Notes: | 2-Wire Connection Includes (2) 3-1/2 Foot Wire Harness With Bullet Connectors and Hardware Kit With O-Ring |
| Application: | Late Model 50-150HP Mercury & Mariner Outboards w/ Single Ram |
| Weight: | 4.72 lbs / 2.15 kg |
| FORCE | 1201 | 1990 | 120HP |
| FORCE | 1201 | 1991 | 120HP |
| FORCE | 1201 | 1992 | 120HP |
| FORCE | 1208 | 1990 | 120HP |
| FORCE | 1208 | 1991 | 120HP |
| FORCE | 1208 | 1992 | 120HP |
| FORCE | 120ELPT | 1993 | 120HP |
| FORCE | 120ELPT | 1994 | 120HP |
| FORCE | 120ELPT | 1996 | 120HP |
| FORCE | 120ELPT | 1997 | 120HP |
| FORCE | 120ELPT | 1998 | 120HP |
| FORCE | 120ELPT | 1999 | 120HP |
| FORCE | 120EXLPT | 1993 | 120HP |
| FORCE | 120EXLPT | 1994 | 120HP |
| FORCE | 120EXLPT | 1996 | 120HP |
| FORCE | 120EXLPT | 1997 | 120HP |
| FORCE | 120EXLPT | 1998 | 120HP |
| FORCE | 120EXLPT | 1999 | 120HP |
| FORCE | 1501 | 1989 | 150HP |
| FORCE | 1501 | 1990 | 150HP |
| FORCE | 1501 | 1991 | 150HP |
| FORCE | 1501 | 1992 | 150HP |
| FORCE | 1508 | 1989 | 150HP |
| FORCE | 1508 | 1990 | 150HP |
| FORCE | 1508 | 1991 | 150HP |
| FORCE | 1508 | 1992 | 150HP |
| FORCE | 150ELPT | 1993 | 150HP |
| FORCE | 150ELPT | 1994 | 150HP |
| FORCE | 150EXLPT | 1993 | 150HP |
| FORCE | 150EXLPT | 1994 | 150HP |
| FORCE | 407 | 1992 | 40HP |
| FORCE | 408 | 1992 | 40HP |
| FORCE | 40EL | 1993 | 40HP |
| FORCE | 40EL | 1994 | 40HP |
| FORCE | 40ELPT | 1993 | 40HP |
| FORCE | 40ELPT | 1994 | 40HP |
| FORCE | 507 | 1991 | 50HP |
| FORCE | 507 | 1992 | 50HP |
| FORCE | 508 | 1991 | 50HP |
| FORCE | 508 | 1992 | 50HP |
| FORCE | 50EL | 1993 | 50HP |
| FORCE | 50EL | 1994 | 50HP |
| FORCE | 50ELPT | 1993 | 50HP |
| FORCE | 50ELPT | 1994 | 50HP |
| FORCE | 706 | 1991 | 70HP |
| FORCE | 706 | 1992 | 70HP |
| FORCE | 708 | 1991 | 70HP |
| FORCE | 708 | 1992 | 70HP |
| FORCE | 70EL | 1993 | 70HP |
| FORCE | 70EL | 1994 | 70HP |
| FORCE | 70EL | 1995 | 70HP |
| FORCE | 70ELPT | 1993 | 70HP |
| FORCE | 70ELPT | 1994 | 70HP |
| FORCE | 70ELPT | 1995 | 70HP |
| FORCE | 75EL | 1996 | 75HP |
| FORCE | 75EL | 1997 | 75HP |
| FORCE | 75EL | 1998 | 75HP |
| FORCE | 75EL | 1999 | 75HP |
| FORCE | 75ELPT | 1996 | 75HP |
| FORCE | 75ELPT | 1997 | 75HP |
| FORCE | 75ELPT | 1998 | 75HP |
| FORCE | 75ELPT | 1999 | 75HP |
| FORCE | 903 | 1991 | 90HP |
| FORCE | 903 | 1992 | 90HP |
| FORCE | 906 | 1991 | 90HP |
| FORCE | 906 | 1992 | 90HP |
| FORCE | 908 | 1991 | 90HP |
| FORCE | 908 | 1992 | 90HP |
| FORCE | 90EL | 1993 | 90HP |
| FORCE | 90EL | 1994 | 90HP |
| FORCE | 90ELPT | 1993 | 90HP |
| FORCE | 90ELPT | 1994 | 90HP |
| FORCE | 90ELPT | 1996 | 90HP |
| FORCE | 90ELPT | 1997 | 90HP |
| FORCE | 90ELPT | 1998 | 90HP |
| FORCE | 90ELPT | 1999 | 90HP |
| FORCE | 90EXLPT | 1993 | 90HP |
| FORCE | 90EXLPT | 1994 | 90HP |
| FORCE | 90EXLPT | 1996 | 90HP |
| FORCE | 90EXLPT | 1997 | 90HP |
| FORCE | 90EXLPT | 1998 | 90HP |
| FORCE | 90EXLPT | 1999 | 90HP |
| MERCURY MARINE | 100ELPTO 2-Stroke | 1988 | 100HP |
| MERCURY MARINE | 100ELPTO 2-Stroke | 1989 | 100HP |
| MERCURY MARINE | 100ELXLPTO 2-Stroke | 1988 | 100HP |
| MERCURY MARINE | 100ELXLPTO 2-Stroke | 1989 | 100HP |
| MERCURY MARINE | 115ELPTO 2-Stroke | 1989 | 115HP |
| MERCURY MARINE | 115EXLPTO 2-Stroke | 1989 | 115HP |
| MERCURY MARINE | 35ELO | 1987 | 35HP |
| MERCURY MARINE | 35ELO | 1988 | 35HP |
| MERCURY MARINE | 35ELO | 1989 | 35HP |
| MERCURY MARINE | 35ELPTO | 1987 | 35HP |
| MERCURY MARINE | 35ELPTO | 1988 | 35HP |
| MERCURY MARINE | 35ELPTO | 1989 | 35HP |
| MERCURY MARINE | 35EO | 1987 | 35HP |
| MERCURY MARINE | 35EO | 1988 | 35HP |
| MERCURY MARINE | 35EO | 1989 | 35HP |
| MERCURY MARINE | 35M | 1987 | 35HP |
| MERCURY MARINE | 35M | 1988 | 35HP |
| MERCURY MARINE | 35M | 1989 | 35HP |
| MERCURY MARINE | 35ML | 1987 | 35HP |
| MERCURY MARINE | 35ML | 1988 | 35HP |
| MERCURY MARINE | 35ML | 1989 | 35HP |
| MERCURY MARINE | 40ELHPTO 2-Stroke | 1989 | 40HP |
| MERCURY MARINE | 40ELO 2-Stroke | 1989 | 40HP |
| MERCURY MARINE | 40ELPTO 2-Stroke | 1989 | 40HP |
| MERCURY MARINE | 50ELO 2-Stroke | 1988 | 50HP |
| MERCURY MARINE | 50ELO 2-Stroke | 1989 | 50HP |
| MERCURY MARINE | 50ELPTO 2-Stroke | 1988 | 50HP |
| MERCURY MARINE | 50ELPTO 2-Stroke | 1989 | 50HP |
| MERCURY MARINE | 60ELO 2-Stroke | 1988 | 60HP |
| MERCURY MARINE | 60ELO 2-Stroke | 1989 | 60HP |
| MERCURY MARINE | 60ELPTO 2-Stroke | 1988 | 60HP |
| MERCURY MARINE | 60ELPTO 2-Stroke | 1989 | 60HP |
| MERCURY MARINE | All Models | All | 30-125 HP |
| MERCURY MARINE | All Models | All | 50-120HP |
