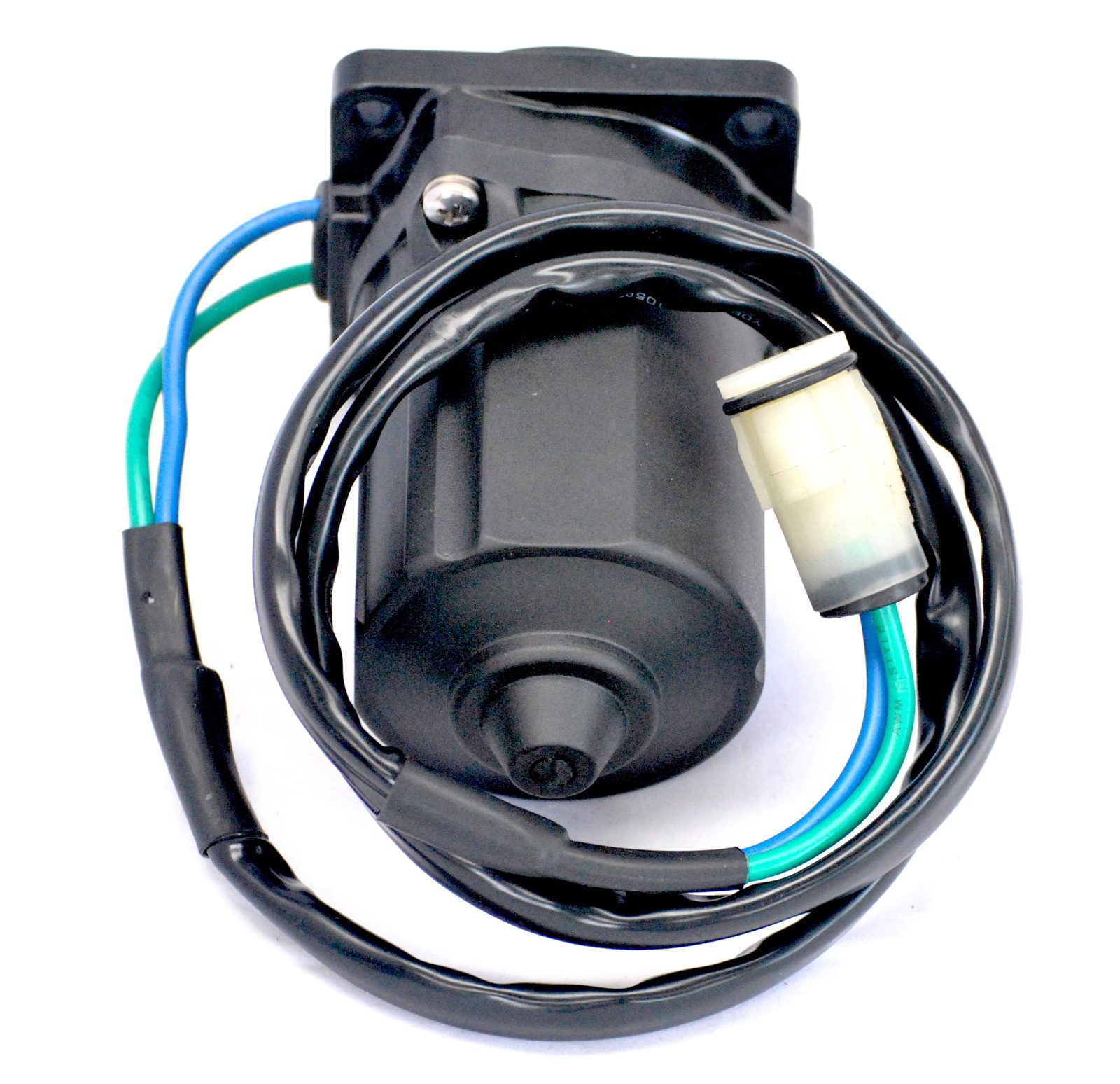

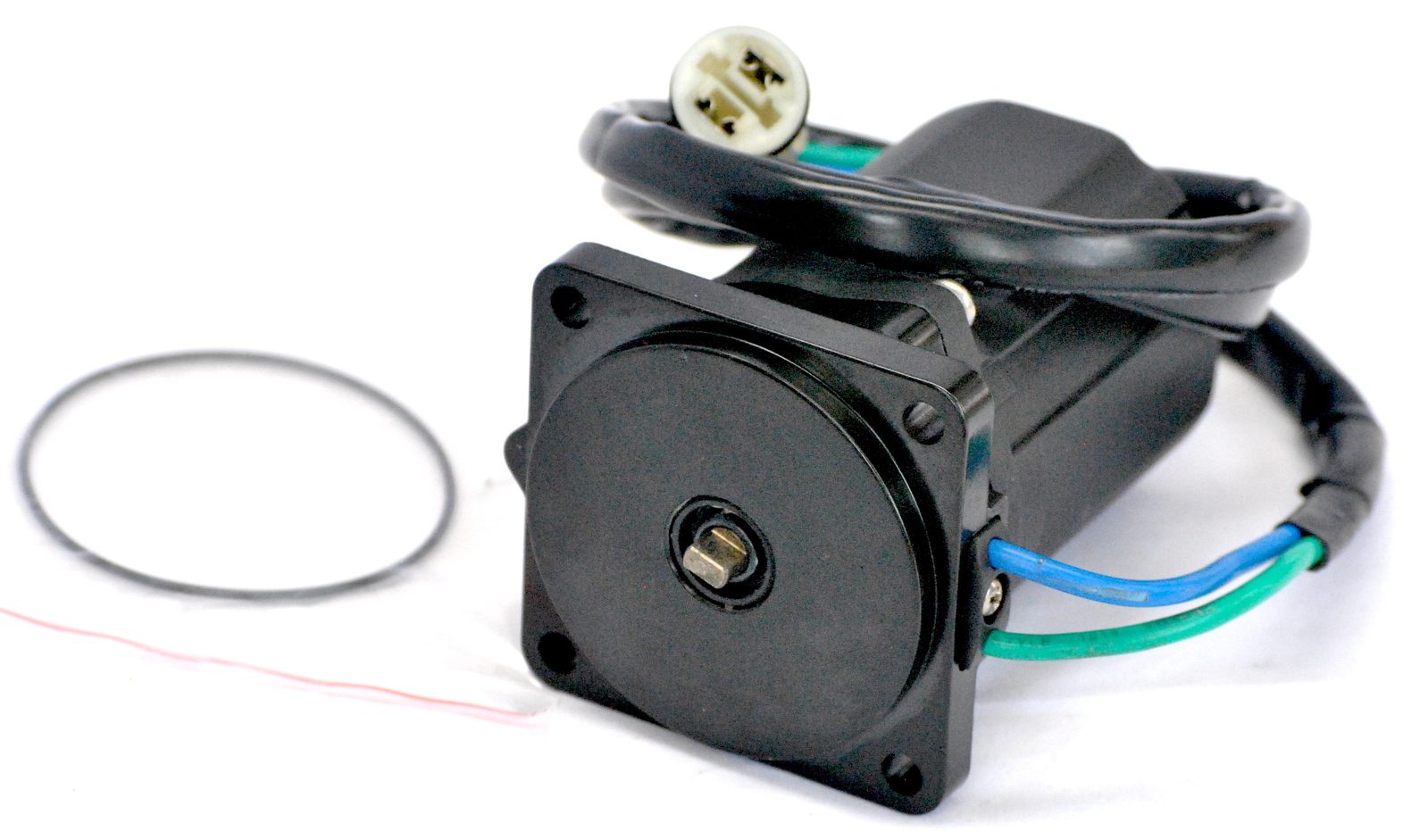

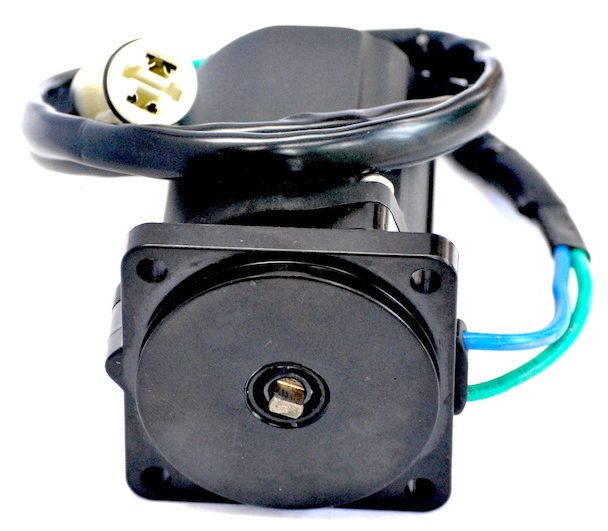

Brand New Tilt Trim Motor for Honda Marine 36120-ZW4-H12 – BF40 BF50 12 Volts Premium Product
SKU: 6237
$128.64
Out of stock
Out of stock
Product information
| Weight | 3 kg |
|---|---|
| Dimensions | 20 × 20 × 20 cm |
Description
Item Specifics:
| Specific Type | Specific Value |
| Type | Tilt Trim Motor |
| Manufacturer Part Number | 36120-ZW4-H12 |
| MPN | 36120ZW4H12 |
| Compatible Brand | Honda marine |
| Compatible Model | BF40, BF50 ENGINES |
Reference:
| Arco | 6237 |
| Honda | 36120ZW4H12, 36120-ZW4-H12 |
Specification:
| Description: | Tilt/Trim Motor |
| OEM(s): | Honda |
| Voltage: | 12 |
| Condition: | New |
| Rotation: | Reversible |
| OD: | 2.61 / 66.500mm |
| Length: | 126.900 mm/ 4.996 in |
| Terminal 1 Size: | Wire |
| Terminal 2 Size: | Wire |
| Shaft: OD | 4mm Drive Tang 0.31in/8mm |
| Current Type: | DC |
| Warranty: | 1 Year |
Applications:
HONDA BF40, BF50 ENGINES 2004-ONNotes:
-
- Overall Cord and Plug Lenght: 36in Field Case OD: 67mm Field Case Length: 100mm-To Rear Tip
- Mounting Holes Centre: 62mm Mounting Ring 70mm OD
- Armature Shaft Blade: 8mm L x 4mm W x 6mm T
