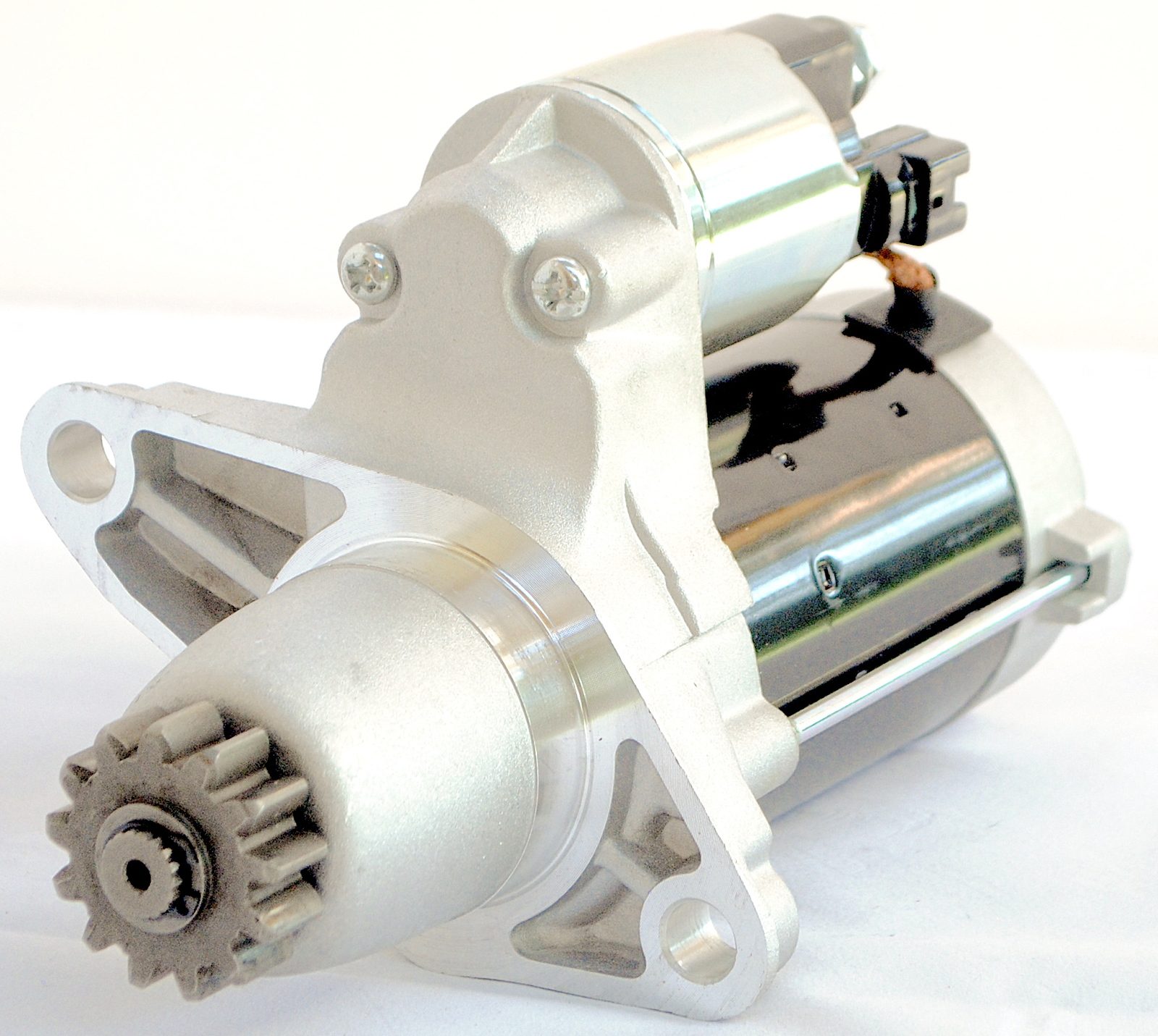

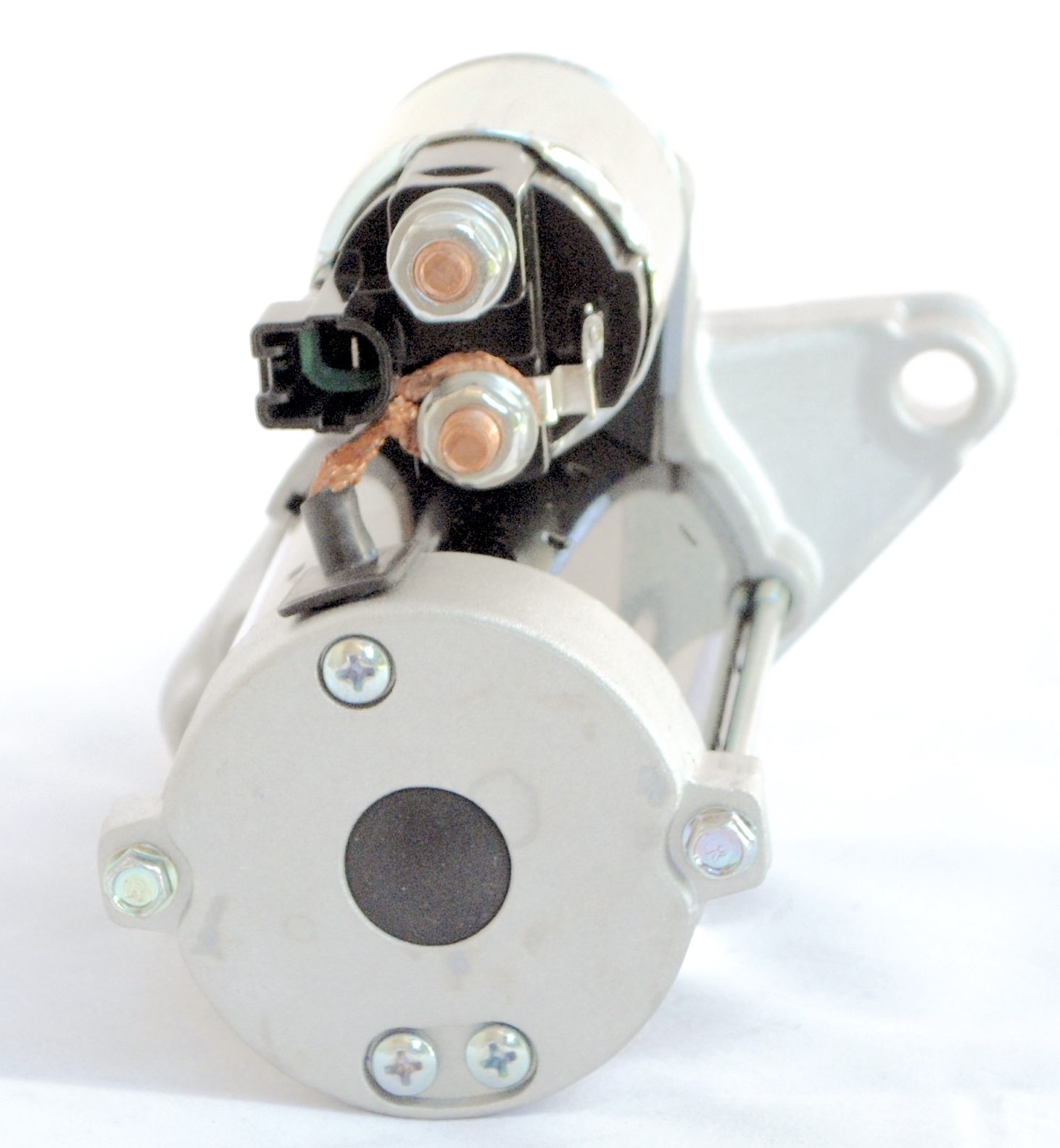

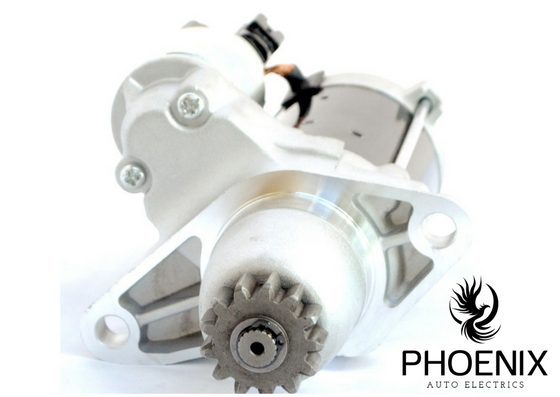

Starter motor for Toyota Camry, Highlander, Rav 4, Kluger, Lexus, Tarago
SKU: 17825
$119.95
Out of stock
Out of stock
Product information
| Weight | 4 kg |
|---|---|
| Dimensions | 30 × 30 × 30 cm |
Description
Item Specifics:
| Specific Type | Specific Value |
| Type | Starter |
| Power Source | Electric |
| Suit these brands | Lexus, toyota |
| Cross Reference Numbers |
281000A010, 281000A01084, 2810020020, 281002002084,
|
| MODEL |
Rav 4, Kluger, Camry, RX330, RX350, ES300, ES330, ES350
|
| Cross Reference Numbers 2 |
281002804184, 28100-28041-84, 281000-H050, 281000-H051
|
| Cross Reference Numbers 3 |
228000-9900, 228000-9901, 228000-9902, 280-0322, 428000-1080
|
| Cross Reference Numbers 4 | 428000-1840, 9642809-108, 428000-690, 428000-700, |
Reference:
| Denso | 228000-9900, 228000-9901, 228000-9902, 280-0322, 428000-1080, 428000-1840, 9642809-108, 428000-690, 428000-700 |
| Lester | 17825, LRS02261, LRS2261 |
| Remy Light Duty | 17338, 17449, 99632 |
| Toyota | 28100-0A010, 28100-0A010-84, 28100-20020, 28100-20020-84, 28100-28040, 28100-28041, 28100-28041-84, 281000-H050, 281000-H051, 281000-OH060 |
Specification:
| Description: | Starter |
| OEM(s): | Denso, Lexus, Toyota |
| Voltage: | 12 |
| Power: | 1.6kW / 2.14HP |
| Condition: | New |
| Rotation: | CCW |
| Starter Type: | PMGR |
| Number of Teeth: | 13 |
| Overall Length: | 230mm |
| Flange Diameter | 55mm |
| Mtg Hole: | 11.5mm |
| Field Housing Diameter | 68mm |
| Nose cone Length | 72mm |
| Mtg Hole centre to centre: | 123.5mm |
| Out of Mesh Clear | 65mm |
| Pinion Diameter | 405mm |
| Warranty: | 1 Year |
| Weight: | 7.02 lbs / 3.19 kg |
Applications:
| Model Year | Model | Engine Code | Engine Size |
| 2002 - 2006 | Toyota Camry [ ACV30 / ACV35 ] | 2AZ-FE | 2.4L |
| 2002 - 2006 | Toyota Camry [ MCV30 ] | 1MZ-FE | 3.0L |
| 2004 - 2006 | Toyota Camry [ MCV31 ] | 3MZ-FE | 3.3L |
| 2007 - 2009 | Toyota Camry [ ACV40 / ACV45 ] | 2AZ-FE | 2.4L |
| 2007 - 2009 | Toyota Camry [ GSV40 ] | 2GR-FE | 3.5L |
| 2006 - Present | Toyota Estima / Previa / Tarago [ ACR50 / ACR55 ] | 2AZ-FE | 2.4L |
| 2004 - 2007 | Toyota Highlander [ ACU20 / ACU25 ] | 2AZ-FE | 2.4L |
| 2004 - 2007 | Toyota Highlander [ MCU20 / MCU25 ] | 1MZ-FE | 3.0L |
| 2004 - 2007 | Toyota Highlander [ MCU21 / MCU26 ] | 3MZ-FE | 3.3L |
| 2008 - 2009 | Toyota Highlander [ GSU40 / GSU45 ] | 2GR-FE | 3.5L |
| 2004 - 2007 | Toyota Kluger [ ACU20 / ACU25 ] | 2AZ-FE | 2.4L |
| 2004 - 2007 | Toyota Kluger [ MCU20 / MCU25 ] | 1MZ-FE | 3.0L |
| 2004 - 2007 | Toyota Kluger [ MCU21 / MCU26 ] | 3MZ-FE | 3.3L |
| 2008 - 2009 | Toyota Kluger [ GSU40 / GSU45 ] | 2GR-FE | 3.5L |
| 2006 - 2008 | Toyota RAV4 [ ACA31 / ACA36 ] | 2AZ-FE | 2.4L |
| 2006 - 2008 | Toyota RAV4 [ GSA33 / GSA38 ] | 2GR-FE | 3.5L |
| 2004 - 2006 | Toyota Sienna [ MCL20 / MCL23 / MCL25 ] | 3MZ-FE | 3.3L |
| 2007 - 2010 | Toyota Sienna [ GSL20 / GSL23 / GSL25 ] | 2GR-FE | 3.5L |
| 2004 - 2008 | Toyota Solara [ ACV30 / ACV35 ] | 2AZ-FE | 2.4L |
| 2004 - 2008 | Toyota Solara [ MCV31 ] | 3MZ-FE | 3.3L |
| 2009 - 2010 | Toyota Venza [ AGV10 / AGV15 ] | 1AR-FE | 2.7L |
| 2009 - 2010 | Toyota Venza [ GGV10 / GGV15 ] | 2GR-FE | 3.5L |
| 2002 - 2003 | Lexus ES300 [ MCV30 ] | 1MZ-FE | 3.0L |
| 2004 - 2006 | Lexus ES330 [ MCV31 ] | 3MZ-FE | 3.3L |
| 2007 - 2010 | Lexus ES350 [ GSV40 ] | 2GR-FE | 3.5L |
| 2004 - 2006 | Lexus RX330 [ MCU33 / MCU38 ] | 3MZ-FE | 3.3L |
| 2007 - 2010 | Lexus RX350 [ GSU30 / GSU31 / GSU35 / GSU36 ] | 2GR-FE | 3.5L |
| 2005 - 2010 | Scion tC [ ANT10 ] | 2AZ-FE | 2.4L |
| 2008 - 2010 | Scion xB [ AZE151 ] | 2AZ-FE | 2.4L |
-
- Avalon MCX10R engine 1MZ-FE V6 3.0L 00-03;
- Avensis engine 3F-SE 4cyl. 2.0L 94-00;
- Camry ACV36R eng.2AZ-FE 4cyl. 2.4L 02-06;
- Camry ACV40R eng.2AZ-FE 4cyl. 2.4L 06-11;
- Camry VCV10R eng. 3VZ-FE V6 3.0L 95-97;
- Camry VDV10 eng. 3VZ-FE V6 3.0L 93-94;
- Camry MCV20R eng. 1MZ-FE V6 3.0L 97-02;
- Camry MCV36R eng.1MZ-FE V6 3.0L 02-06;
- Celica eng.2VZ-FE 4cyl. 2.5L 88-91;
- Celica ST162 engine 3S-FE 4cyl. 2.0L 85-89;
- Celica ST162 engine 3S-GE 4cyl. 2.0L 87-89;
- Celica ST182, ST184, ST204 engine 5S-FE 2.2L 89-99;
- Celica 204 engine 5S-FE 2.2L 94-99;
- Celica ST185, ST205 engine 3S-GET 2.0L 90-95;
- Lexus ES250 eng.3S-FE 2.0L 90-91;
- MR2 SW20 eng.3S-GE 2.0L 4cyl. 90-99;
- RAV4 (SXA10/11) eng.3S-FE 4cyl. 2.0L, 2.4L 94-00;
- RAV4 ACA20R eng.1AZ-FE 4cyl. 2.0L 00-03;
- Spacia SR40R eng.3S-FE 4cyl. 2.0L 00-01;
- Vienta VDV10 eng.3VZ-FE V6 3.0L 93-97;
- Vienta MCV20R eng.1MZ-FE V6 3.0L 97-00.
